Kubota

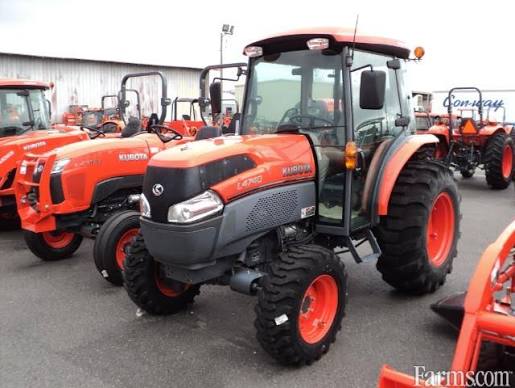

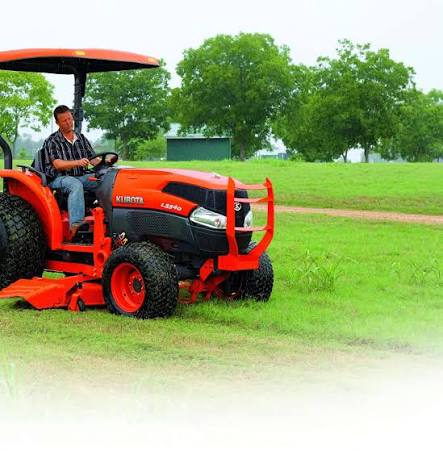

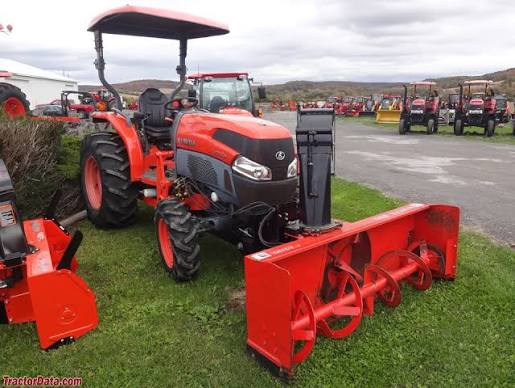

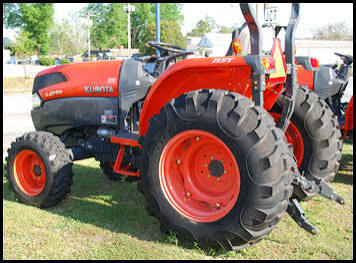

L4740 HSTC
- Operating Weight
- 4,001 lb
- Displacement
- 148 in³
- Power Measured @
- 2,700 rpm
- Gross Power
- 49.0 hp
1 / 5
Image 1 of 5
Specifications
25 data points
Operating Specifications
| Operating Weight | 4,001 lb |
|---|---|
| Fuel Capacity | 14.3 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 2,756 lb |
| 3 Point Hitch Type | Cat. I |
| Turning Radius | 107 in |
| Alternator Supplied Amperage | 55 A |
| Operating Voltage | 12 V |
Engine
| Engine Model | E-TVCS |
|---|---|
| Displacement | 148 in³ |
| Power Measured @ | 2,700 rpm |
| Gross Power | 49.0 hp |
| Net Power | 47.0 hp |
| Number of Cylinders | 4 |
| Aspiration | natural |
| PTO Power | 40.0 hp |
Hydraulic System
| Pump Flow Capacity | 14.7 gal/min |
|---|
Dimensions
| Height - Top of Cab | 101 in |
|---|---|
| Wheelbase | 76 in |
| Overall Length | 10 in |
| Tire Size | front 8.3-16 rear 14.9-24 |
| Width Outside Frame | 67 in |
Transmission
| Max Speed | 16.1 mph |
|---|---|
| Number of Forward Gears | 3 |
| Transmission Type | HST plus 3 range |
| Number of Reverse Gears | 3 |
