Kubota

M100GX

Tractor

Operating Weight
8,796 lb
Displacement
230 in³
Power Measured @
2,600 rpm
Gross Power
100.0 hp
All tractors

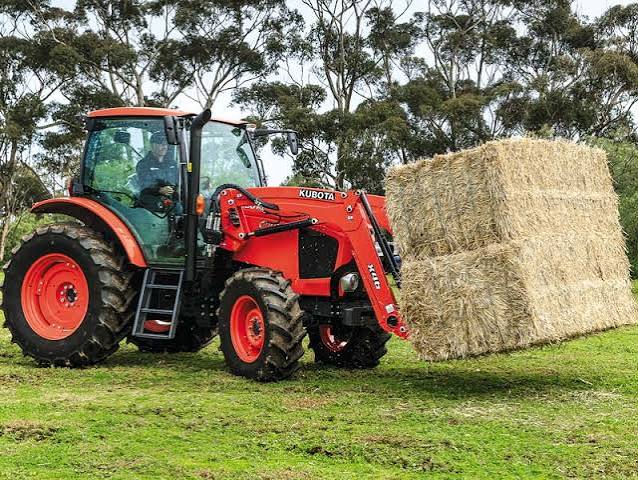

Kubota M100GX Tractor
1 / 5
Image 1 of 5
Image: streackertractor.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,796 lb
Fuel Capacity50.2 gal
3 Point Hitch Lift Capacity @ 24 inches9,447 lb
Turning Radius150 in
Tire Size Front - 2wd / 4wd340/85R24

Engine

Engine specifications
Engine ModelV3800-TI-CRS
Displacement230 in³
Power Measured @2,600 rpm
Gross Power100.0 hp
Net Power100.0 hp
Number of Cylinders4
AspirationTurbocharger with intercooler
Engine MakeKubota
PTO Power86.0 hp
Stroke5 in
Bore4 in

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity18.8 gal/min
Number of Remote Control Valves2

Dimensions

Dimensions specifications
Wheelbase96 in
Overall Length167 in
Overall Width83 in
Height - Top of ROPS/FOPS111 in
Crop clearance22 in
Tread with R4-Front60 in
Tread with R4-Rear80 in

Transmission

Transmission specifications
Max Speed23.7 mph
Number of Forward Gears24
Transmission TypeIntelli-Shift transmission
Number of Reverse Gears24

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size480/70R34

Production

Production specifications
SeriesGrand X Series
Years Manufactured—
