Kubota

M105S

Tractor

Displacement
230 in³
Power Measured @
2,600 rpm
All tractors

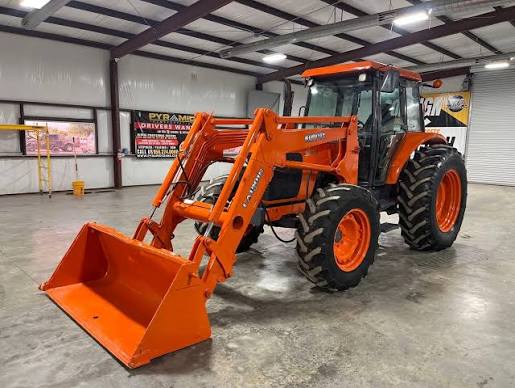

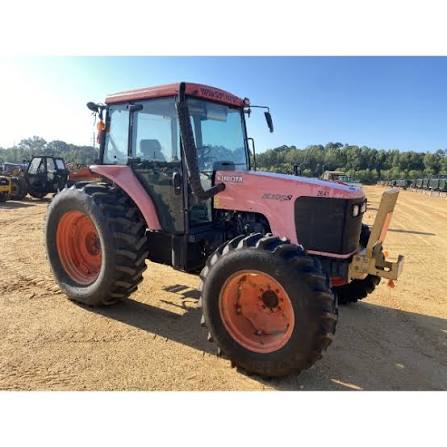

Kubota M105S Tractor
1 / 5
Image 1 of 5
Image: tractordata.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity46.3 gal
3 Point Hitch Lift Capacity @ 24 inches7,496 lb
3 Point Hitch TypeCat II
Turning Radius186 in

Engine

Engine specifications
Engine ModelV3800-DT-TI
Displacement230 in³
Power Measured @2,600 rpm
Net Power105.0 hp
Number of Cylinders4
Aspirationturbocharged w/ intercooled
PTO Power93.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity17.2 gal/min
Number of Remote Control Valves1
Relief Valve Pressure2,847 psi

Dimensions

Dimensions specifications
Height - Top of Cab106 in
Wheelbase96 in
Overall Length14 in
Tire Size13.6-24/18.4-34 cast

Transmission

Transmission specifications
Number of Forward Gears16
Transmission Typefully synchronized
Number of Reverse Gears16
