Kubota
Yanmar
EG782M
Tractor
19 specifications
Kubota
M135GX
- Operating Weight
- 10,373 lb
- Displacement
- 374 in³
- Power Measured @
- 2,200 rpm
- Gross Power
- 135.0 hp
1 / 5

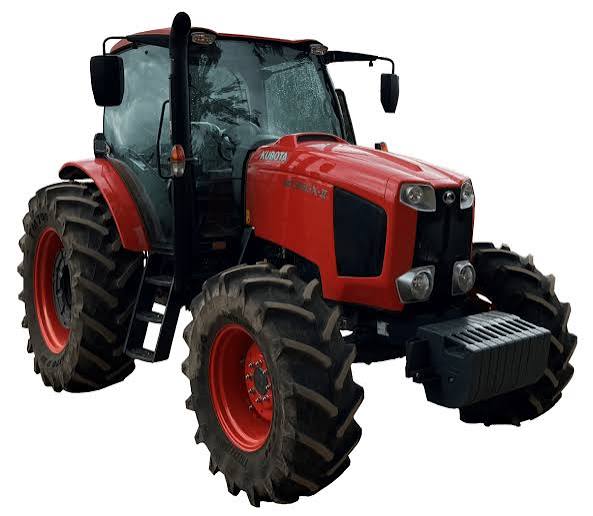

Image 1 of 5
Specifications
32 data points
Operating Specifications
| Operating Weight | 10,373 lb |
|---|---|
| Fuel Capacity | 50.2 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 11,464 lb |
| Turning Radius | 162 in |
| Tire Size Front - 2wd / 4wd | 420/70R24 |
Engine
| Engine Model | V6108-TI-CRS |
|---|---|
| Displacement | 374 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 135.0 hp |
| Net Power | 135.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbocharger with intercooler |
| Engine Make | Kubota |
| PTO Power | 118.0 hp |
| Stroke | 6 in |
| Bore | 5 in |
Hydraulic System
| Pump Flow Capacity | 20.4 gal/min |
|---|---|
| Number of Remote Control Valves | 2 |
Dimensions
| Wheelbase | 107 in |
|---|---|
| Overall Length | 173 in |
| Overall Width | 84 in |
| Height - Top of ROPS/FOPS | 114 in |
| Crop clearance | 24 in |
| Tread with R4-Front | 70 in |
| Tread with R4-Rear | 82 in |
Transmission
| Max Speed | 24.5 mph |
|---|---|
| Number of Forward Gears | 24 |
| Transmission Type | Intelli-Shift transmission |
| Number of Reverse Gears | 24 |
Tires & Wheels
| Rear Tires Size | 520/70R38 |
|---|
Production
| Series | Grand X Series |
|---|---|
| Years Manufactured | — |
