Kubota
M4900SUD
- Operating Weight
- 3,924 lb
- Displacement
- 168 in³
- Power Measured @
- 2,600 rpm
- Gross Power
- 54.0 hp
1 / 5

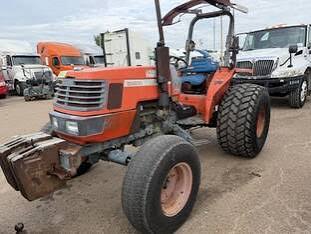

Image 1 of 5
Specifications
23 data points
Operating Specifications
| Operating Weight | 3,924 lb |
|---|---|
| Fuel Capacity | 17.2 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 3,307 lb |
| 3 Point Hitch Type | Cat I & II |
| Operating Voltage | 12 V |
| Cooling System Fluid Capacity | 1.7 gal |
| Engine Oil Capacity | 2.2 gal |
Engine
| Engine Model | E2803-ELA |
|---|---|
| Displacement | 168 in³ |
| Power Measured @ | 2,600 rpm |
| Gross Power | 54.0 hp |
| PTO Power | 45.0 hp |
Hydraulic System
| Pump Flow Capacity | 17.1 gal/min |
|---|
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Height - Top of Cab | 94 in |
| Wheelbase | 79 in |
| Overall Length | 6 in |
| Tire Size | front 8.3-24 R1 rear 14.9-28 R1 |
| Width Outside Frame | 67 in |
Transmission
| Number of Forward Gears | 8 |
|---|---|
| Transmission Type | partially synchronized |
| Number of Reverse Gears | 4 |
Axles
| Final Drive | inboard planetary |
|---|
