KubotaKubota
L5030GST
Tractor
26 specifications

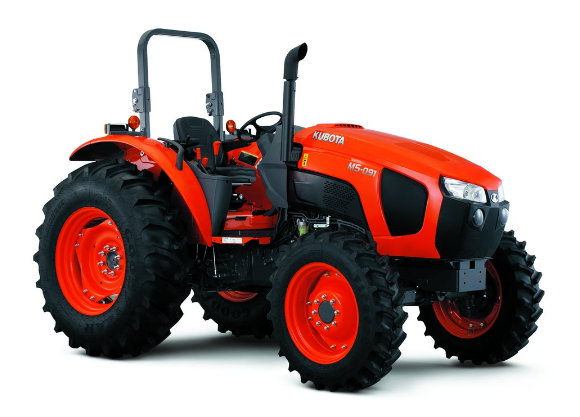

Kubota
M5-091HDRC
- Operating Weight
- 6,151 lb
- Displacement
- 230 in³
- Power Measured @
- 2,400 rpm
- Gross Power
- 92.5 hp
1 / 5
Image 1 of 5
Specifications
37 data points
Operating Specifications
| Operating Weight | 6,151 lb |
|---|---|
| Fuel Capacity | 27.8 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 4,630 lb |
| 3 Point Hitch Type | Category 2 |
| Turning Radius | 166 in |
| Alternator Supplied Amperage | 80 A |
| Tire Size Front - 2wd / 4wd | 11.2-24 R1 |
Engine
| Displacement | 230 in³ |
|---|---|
| Power Measured @ | 2,400 rpm |
| Gross Power | 92.5 hp |
| Net Power | 85.5 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged |
| Engine Make | KUBOTA |
| PTO Power | 76.0 hp |
| Engine Type | 4 cylinders in-line Common Rail System direct injection |
| Model Name | M5-091HDRC |
Hydraulic System
| Pump Flow Capacity | 15.7 gal/min |
|---|---|
| Number of Remote Control Valves | 1 |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 100 in |
| Wheelbase | 89 in |
| Overall Length | 156 in |
| Width Outside Frame | 79 in |
| Rear Tread Range | — |
| Front Tread Range | 62 in |
Transmission
| Number of Forward Gears | 8 |
|---|---|
| Number of Reverse Gears | 8 |
| Brakes | Hydraulic wet disc |
| Steering | Hydrostatic power steering |
| Clutch, wet/dry | Multiple wet disc |
| Differential lock | Limited Slip Differential / mechanical |
| shuttle type | Electro-hydraulic shuttle |
| Gear type | Fully synchronized |
Tires & Wheels
| Rear Tires Size | 16.9-30 R1 |
|---|
Power Take-Off (PTO)
| Power Take-Off(PTO) Type | Live-independent PTO electro-hydraulic clutch with brake |
|---|---|
| PTO speed | 540 rpm |
