Kubota

M6-111DTCC-F

Tractor

Operating Weight
9,789 lb
Displacement
230 in³
Power Measured @
2,600 rpm
Gross Power
114.1 hp
All tractors

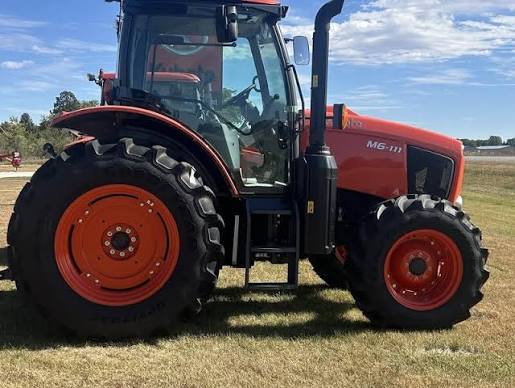

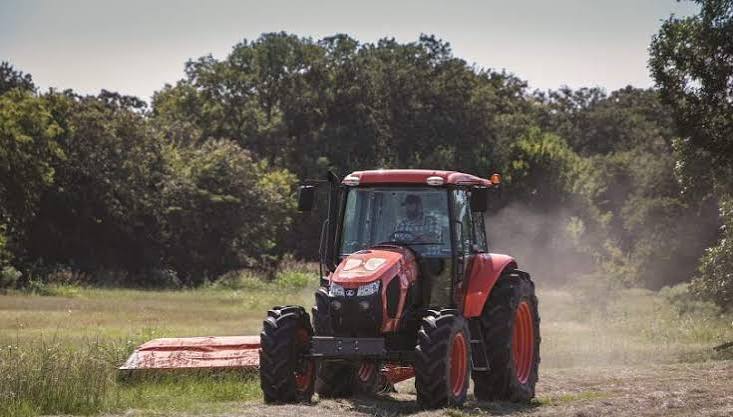

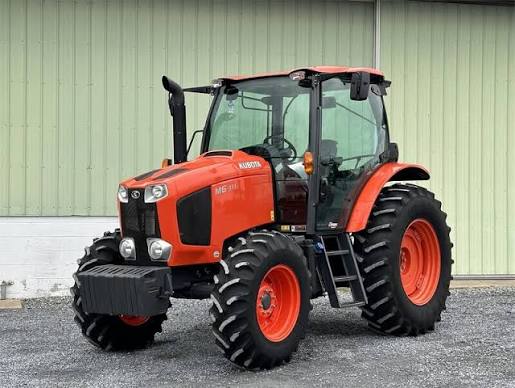

Kubota M6-111DTCC-F Tractor
1 / 5
Image 1 of 5
Image: agdealer.com

Specifications

43 data points

Operating Specifications

Operating Specifications specifications
Operating Weight9,789 lb
3 Point Hitch Lift Capacity @ 24 inches6,834 lb
3 Point Hitch TypeTelescopic lower link ends telescopic stabilizers

Engine

Engine specifications
Engine ModelV3800-TIEF4
Displacement230 in³
Power Measured @2,600 rpm
Gross Power114.1 hp
Net Power106.8 hp
Number of Cylinders4
AspirationTurbocharger with intercooler
Engine MakeKUBOTA
PTO Power92.0 hp
Bore4 in
Stroke5 in
Engine TypeDirect Injection
Alternator130 A
Air cleaner8 Dry dual-element
Battery12V 100Ah at 20hours 900CCA
Model NameM6-111DTCC-F

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity18.7 gal/min
system pressure2,843 psi
Hydraulic systemElectronic draft control

Dimensions

Dimensions specifications
Ground Clearance20 in
Wheelbase96 in
Overall Length165 in
Overall Width83 in
Overall Height113 in
Rear Tread Range80 in
Front Tread Range66 in
Turning radius without brakes 1158 in

Transmission

Transmission specifications
Max Speed21.9 mph
Brake typeHydraulically operated wet disc brakes

Fluid Capacities

Fluid Capacities specifications
Fuel Tank50.2 gal
Engine Oil2.8 gal
Transmission4.0 gal
Engine coolant2.7 gal
Diesel exhaust fluid (DEF) tank4.3 gal

Tires & Wheels

Tires & Wheels specifications
TiresFront - 13.6R24 Rear - 18.4R34

Power Take-Off (PTO)

Power Take-Off (PTO) specifications
Rear PTO6 splines
Mid- PTO21 splines
PTO speed rear540 rpm
PTO Speed Mid1,000 rpm
PTOLive-independent PTO
