Kubota

M8540

Tractor

Operating Weight
5,401 lb
Displacement
230 in³
Power Measured @
2,600 rpm
All tractors

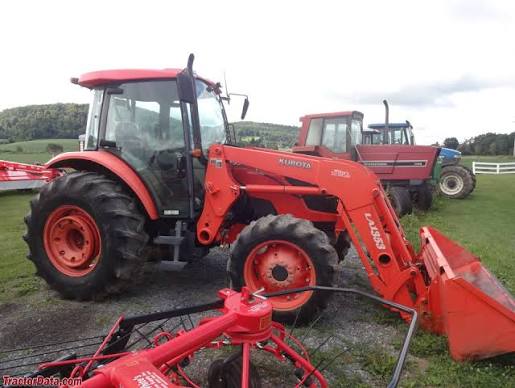

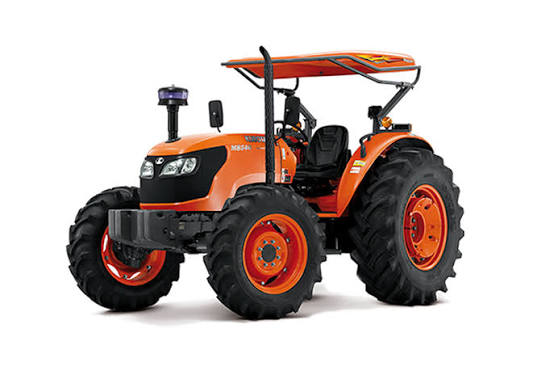

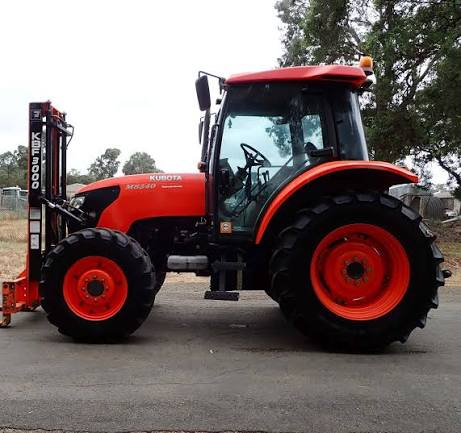

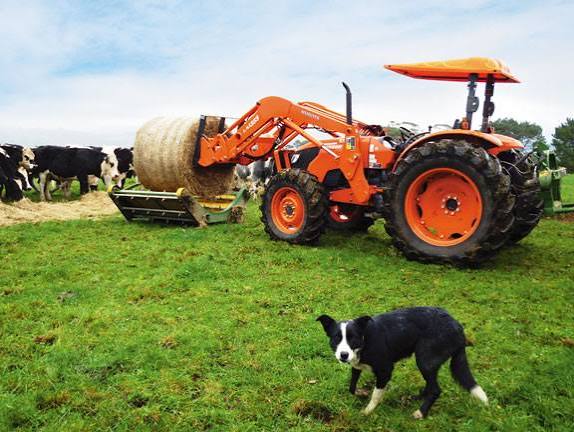

Kubota M8540 Tractor
1 / 5
Image 1 of 5
Image: streackertractor.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight5,401 lb
Fuel Capacity29.1 gal
3 Point Hitch Lift Capacity @ 24 inches4,630 lb
3 Point Hitch TypeCat II
Turning Radius158 in
Alternator Supplied Amperage45 A
Operating Voltage12 V
Tire Size Front - 2wd / 4wd7.50-18

Engine

Engine specifications
Engine ModelV3800TIE2
Displacement230 in³
Power Measured @2,600 rpm
Net Power84.6 hp
Number of Cylinders4
Aspirationturbocharged
PTO Power75.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity17.0 gal/min
Number of Remote Control Valves1

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab101 in
Wheelbase89 in
Overall Width76 in
Tire Sizefront 12.4-24 rear 18.4-28
Width Outside Frame76 in
Height - Top of ROPS/FOPS101 in

Transmission

Transmission specifications
Max Speed20.9 mph
Number of Forward Gears8
Transmission Typesynchronized shift
Number of Reverse Gears8

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size18.4-28
