Kubota

MX5000SU

Tractor

Operating Weight
3,285 lb
Displacement
148 in³
Power Measured @
2,700 rpm
Gross Power
52.2 hp
All tractors

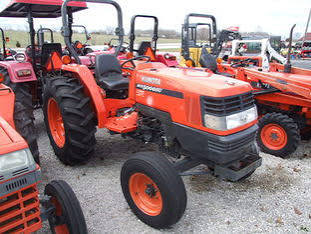

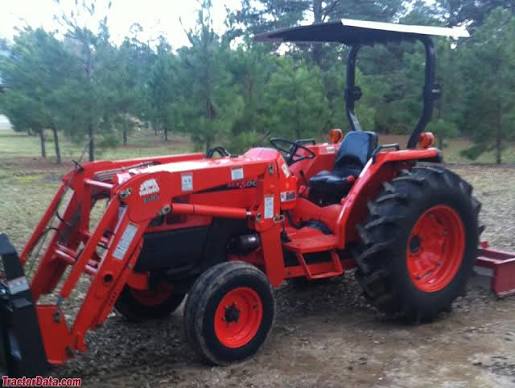

Kubota MX5000SU Tractor
1 / 5
Image 1 of 5
Image: ebay.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight3,285 lb
Fuel Capacity13.3 gal
3 Point Hitch Lift Capacity @ 24 inches2,315 lb
Turning Radius103 in
Operating Voltage12 V
Tire Size Front - 2wd / 4wd7.5L-15 F2
Cooling System Fluid Capacity2.0 gal
Engine Oil Capacity2.1 gal

Engine

Engine specifications
Engine ModelV2403
Displacement148 in³
Power Measured @2,700 rpm
Gross Power52.2 hp
PTO Power44.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity14.1 gal/min

Dimensions

Dimensions specifications
Wheelbase72 in
Overall Length11 in
Overall Width64 in
Height - Top of ROPS/FOPS85 in

Transmission

Transmission specifications
Max Speed16.5 mph
Number of Forward Gears8
Transmission TypeMechanical shuttle constant mesh
Number of Reverse Gears4

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size14.9-26 R1

Production

Production specifications
SeriesMX Series
Years Manufactured2,006 – 2,008
