Kubota
New Holland
TC35
Tractor
21 specifications
1 / 5

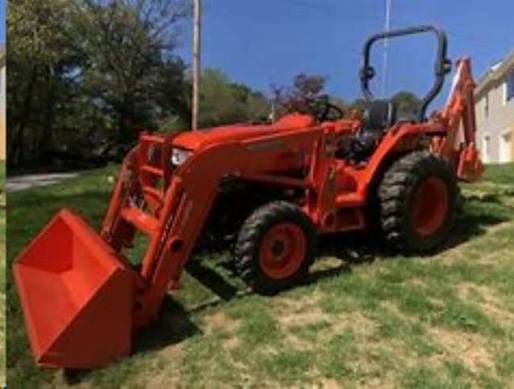

Image 1 of 5
Specifications
25 data points
Operating Specifications
| Operating Weight | 3,717 lb |
|---|---|
| Fuel Capacity | 13.5 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 2,315 lb |
| Hydraulic Pump Flow Capacity | 9.5 gal/min |
Engine
| Engine Model | V2403CR-T |
|---|---|
| Displacement | 149 in³ |
| Gross Power | 54.7 hp |
| Net Power | 52.1 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged |
| Engine Make | Kubota |
| PTO Power | 45.7 hp |
| Alternator | 45 A |
| Model Name | MX5200FRC |
Hydraulic System
| Pump Flow Capacity | 9.5 gal/min |
|---|---|
| Number of Remote Control Valves | — |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 96 in |
| Wheelbase | 74 in |
| Overall Length | 125 in |
| Front Wheel Tread Width | 52 in |
| Rear Wheel Tread Width - min | 59 in |
Transmission
| Number of Forward Gears | 8 |
|---|---|
| Number of Reverse Gears | 8 |
Swing Mechanism
| Swing Speed | 540 rpm |
|---|
