Kubota

MX5200HSTRC

Tractor

Operating Weight
3,735 lb
Displacement
149 in³
Gross Power
54.7 hp
All tractors

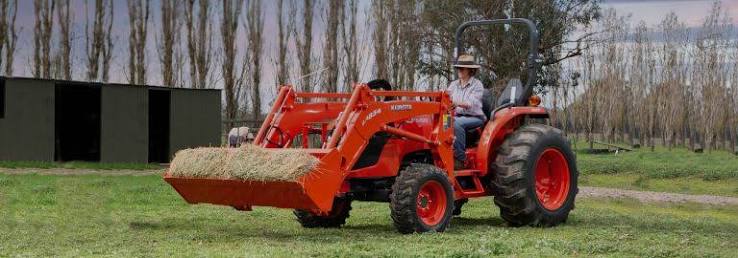

Kubota MX5200HSTRC Tractor
1 / 5
Image 1 of 5
Image: machines4u.com.au

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight3,735 lb
Fuel Capacity13.5 gal
3 Point Hitch Lift Capacity @ 24 inches2,315 lb
Hydraulic Pump Flow Capacity9.5 gal/min

Engine

Engine specifications
Engine ModelV2403CR-T
Displacement149 in³
Gross Power54.7 hp
Net Power52.1 hp
Number of Cylinders4
AspirationTurbocharged
Engine MakeKubota
PTO Power44.2 hp
Alternator45 A
Model NameMX5200HSTRC

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity9.5 gal/min

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab96 in
Wheelbase74 in
Overall Length125 in
Front Wheel Tread Width52 in
Rear Wheel Tread Width - min59 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed540 rpm
