Kubota

U45

Mini Excavator

Operating Weight
11,850 lb
Max Digging Depth
143 in
Net Power
42.0 hp
All mini excavators

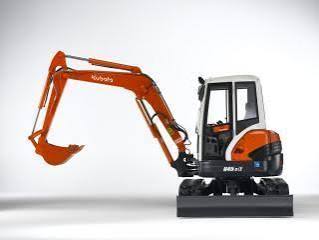

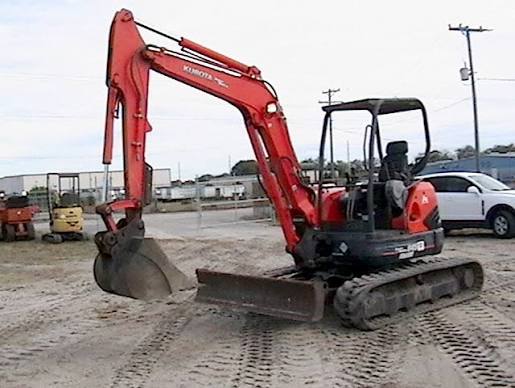

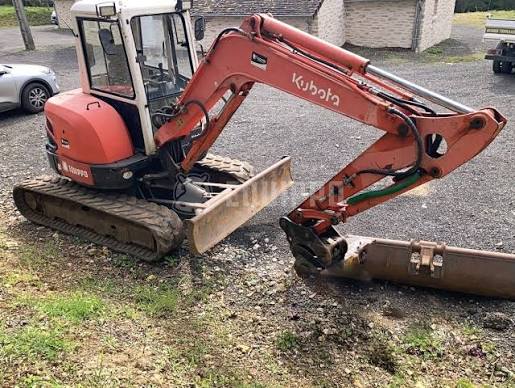

Kubota U45 Mini Excavator
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight11,850 lb
Fuel Capacity18.5 gal
Hydraulic Pump Flow Capacity32.1 gal/min
Hydraulic System Fluid Capacity11.6 gal
Engine Oil Capacity2.3 gal
Cooling System Fluid Capacity2.3 gal

Engine

Engine specifications
Engine ModelV2203-M
Displacement134 in³
Power Measured @2,250 rpm
Net Power42.0 hp
Number of Cylinders4
Aspirationliquid-cooled overhead valve diesel engine

Dimensions

Dimensions specifications
Ground Clearance13 in
Width to Outside of Tracks78 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Max Travel Speed2.7 mph
Drawbar Pull12,871 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth143 in
Max Reach Along Ground231 in
Max Vertical Wall Digging Depth95 in
Max Loading Height157 in
Shipping Length of Unit219 in
Max Cutting Height219 in
Shipping Height of Unit101 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
