Kubota

U55-4

Mini Excavator

Operating Weight
11,915 lb
Max Digging Depth
143 in
Gross Power
49.5 hp
Net Power
45.1 hp
All mini excavators

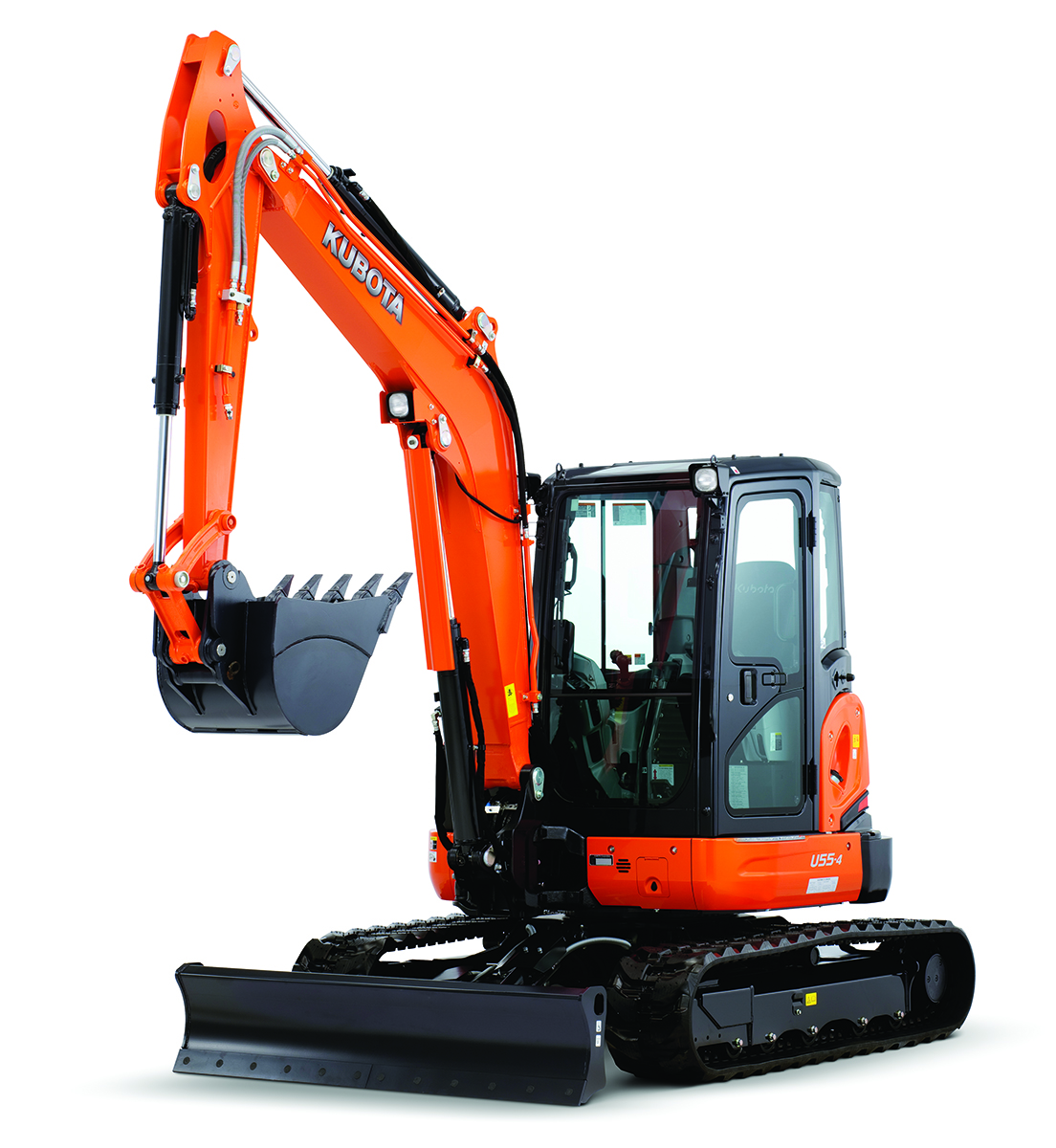

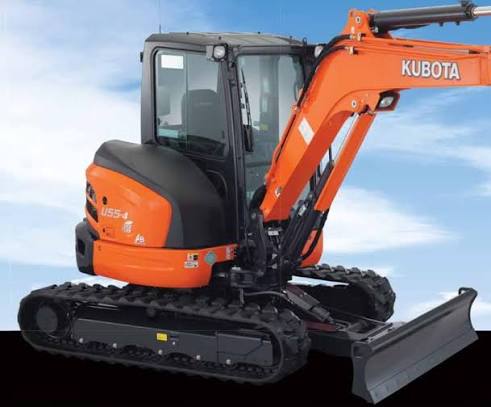

Kubota U55-4 Mini Excavator
1 / 5
Image 1 of 5
Image: colemanequip.com

Specifications

34 data points

Operating Specifications

Operating Specifications specifications
Operating Weight11,915 lb
Fuel Capacity18.0 gal
Hydraulic Pump Flow Capacity11.9 gal/min
Hydraulic System Fluid Capacity20.9 gal
Travel speed, high range3.1 mph
Travel speed, low range2.0 mph
Auxiliary hydraulic flow19.9 gal/min
Auxiliary fuel tank9.8 gal

Engine

Engine specifications
Engine ModelV2607-CR-E4
Displacement9,739 in³
Power Measured @2,200 rpm
Gross Power49.5 hp
Net Power45.1 hp
Number of Cylinders4
Engine MakeKubota
Model NameU55-4A1

Dimensions

Dimensions specifications
Ground Clearance13 in
Overall Length217 in
Overall Width77 in
Tail Swing Radius42 in
Crawler length100 in

Undercarriage

Undercarriage specifications
Shoe Size16 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth143 in
Max Reach Along Ground235 in
Max Vertical Wall Digging Depth60 in
Max.Dumping Height158 in
Max Digging Height221 in
Mximum dig radius239 in

Boom

Boom specifications
Boom swing left75 °
Boom swing right55 °

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Blades

Blades specifications
Blade Lift Height17 in
Maximum Drop below ground17 in
Overall Height101 in
