Landini
Fendt
209 VA
Tractor
19 specifications

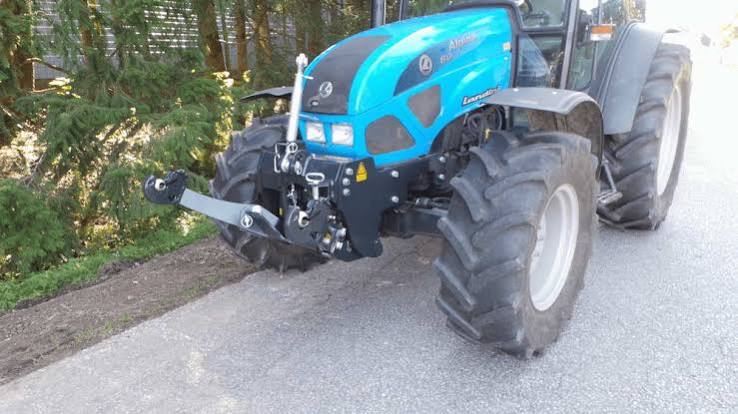

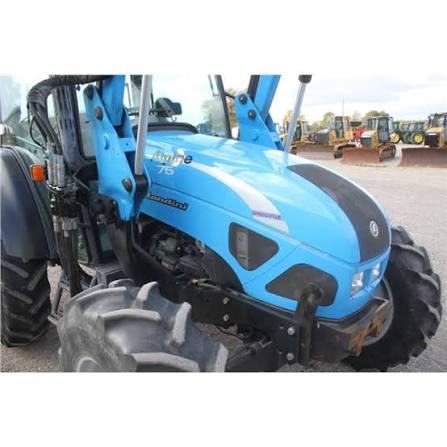

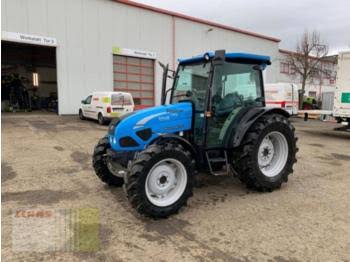

Landini
Alpine 75 STD
- Operating Weight
- 6,170 lb
- Displacement
- 203 in³
- Power Measured @
- 2,500 rpm
- Gross Power
- 76.0 hp
1 / 5
Image 1 of 5
Specifications
22 data points
Operating Specifications
| Operating Weight | 6,170 lb |
|---|---|
| Fuel Capacity | 24.0 gal |
| Turning Radius | 119 in |
Engine
| Engine Model | 804C-33T |
|---|---|
| Displacement | 203 in³ |
| Power Measured @ | 2,500 rpm |
| Gross Power | 76.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged |
| PTO Power | 69.0 hp |
Hydraulic System
| Pump Flow Capacity | 22.0 gal/min |
|---|---|
| Number of Remote Control Valves | 2 |
| Relief Valve Pressure | 2,611 psi |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 96 in |
| Wheelbase | 85 in |
| Overall Length | 13 in |
| Tire Size | Front 360/70R20 Rear 420/70R30 |
| Width Outside Frame | 72 in |
Transmission
| Number of Forward Gears | 30 |
|---|---|
| Transmission Type | Speedfive |
| Number of Reverse Gears | 30 |
