Landini
Fendt
209 VA
Tractor
19 specifications
Landini

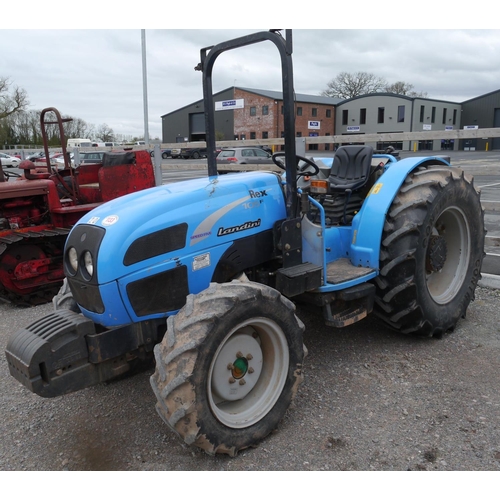

Rex 105 F
- Operating Weight
- 6,259 lb
- Displacement
- 269 in³
- Power Measured @
- 2,200 rpm
- Gross Power
- 98.5 hp
1 / 5
Image 1 of 5
Specifications
22 data points
Operating Specifications
| Operating Weight | 6,259 lb |
|---|---|
| Fuel Capacity | 11.6 gal |
| 3 Point Hitch Type | Cat 2 |
| Turning Radius | 103 in |
Engine
| Engine Model | 1104C-44T |
|---|---|
| Displacement | 269 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 98.5 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged |
| PTO Power | 91.0 hp |
Hydraulic System
| Pump Flow Capacity | 21.6 gal/min |
|---|---|
| Relief Valve Pressure | 2,611 psi |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 89 in |
| Wheelbase | 85 in |
| Overall Length | 13 in |
| Tire Size | Front 280/70R18 Rear 14.9R24 |
| Width Outside Frame | 53 in |
Transmission
| Number of Forward Gears | 15 |
|---|---|
| Transmission Type | Speed five |
| Number of Reverse Gears | 15 |
