Landini
Rex 85 S
- Operating Weight
- 5,863 lb
- Displacement
- 269 in³
- Power Measured @
- 2,200 rpm
- Gross Power
- 81.6 hp
1 / 5

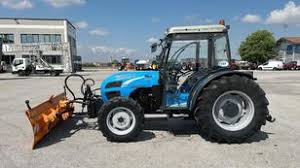

Image 1 of 5
Specifications
22 data points
Operating Specifications
| Operating Weight | 5,863 lb |
|---|---|
| Fuel Capacity | 11.8 gal |
| 3 Point Hitch Type | Cat 2 |
| Turning Radius | 156 in |
Engine
| Engine Model | 1104C-44 |
|---|---|
| Displacement | 269 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 81.6 hp |
| Number of Cylinders | 4 |
| PTO Power | 75.5 hp |
Hydraulic System
| Pump Flow Capacity | 21.6 gal/min |
|---|---|
| Relief Valve Pressure | 2,611 psi |
Dimensions
| Ground Clearance | 10 in |
|---|---|
| Height - Top of Cab | 93 in |
| Wheelbase | 84 in |
| Overall Length | 13 in |
| Tire Size | Front 280/70 R16 Rear 13.6R24 |
| Width Outside Frame | 53 in |
Transmission
| Max Speed | 25.0 mph |
|---|---|
| Number of Forward Gears | 24 |
| Transmission Type | Speed four |
| Number of Reverse Gears | 12 |
