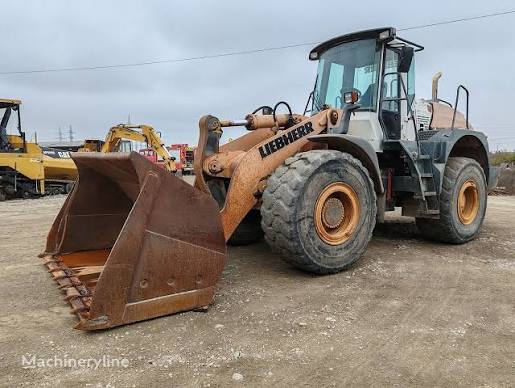

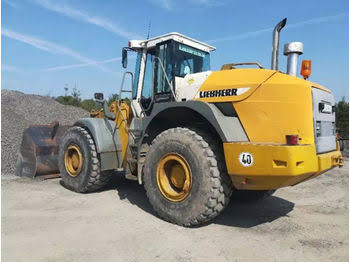

LiebherrLiebherr
L524
Wheel Loader
52 specifications
1 / 5
Image 1 of 5
Specifications
40 data points
Operating Specifications
| Operating Weight | 38,140 lb |
|---|---|
| Fuel Capacity | 68.7 gal |
| Tire Size | 23.5 R 25 |
| Hydraulic System Fluid Capacity | 58.2 gal |
| Static Tipping Weight | 30,699 lb |
| Operating Voltage | 24 V |
| Turning Radius | 251 in |
| Engine Oil Fluid Capacity | 5.5 gal |
| Rear Axle Oscillation | 26 ° |
| Alternator Supplied Amperage | 55 A |
| Front Axle/Diff Fluid Capacity | 13.5 gal |
| Rear Axle/Diff Fluid Capacity | 7.4 gal |
Engine
| Engine Model | D 924 TI-E A2 |
|---|---|
| Displacement | 405 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 198.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Inline engine water-cooled exhaust-turbo charged with intercooler |
| Torque Measured @ | 1,200 rpm |
Hydraulic System
| Pump Flow Capacity | 60.8 gal/min |
|---|---|
| Raise Time | 5.5 s |
| Lower Time | 2.7 s |
| Dump Time | 2.3 s |
| Relief Valve Setting | 4,786 psi |
| Pump Type | Load-sensing variable axial piston pump with output control and pressure cutoff |
Dimensions
| Ground Clearance | 22 in |
|---|---|
| Height - Top of Cab | 133 in |
| Wheelbase | 125 in |
| Reach at Max Lift and Dump | 43 in |
| Length with Bucket on Ground | 320 in |
| Hinge Pin - Max Height | 166 in |
Transmission
| Max Speed - Forward | 24.9 mph |
|---|---|
| Max Speed - Reverse | 24.9 mph |
| Transmission Type | Stepless hydrostatic travel drive 2plus2 |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 4.60 yd³ |
|---|---|
| Dump Clearance at Max Raise | 122 in |
| Breakout Force | 29,225 lb |
| Bucket Width | 107 in |
