Liebherr

LR 1130

Crawler Crane

Power Measured @
1,700 rpm
All crawler cranes

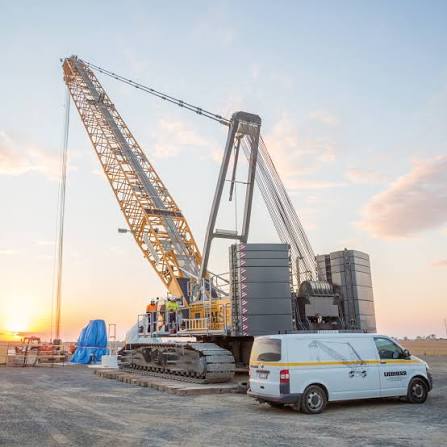

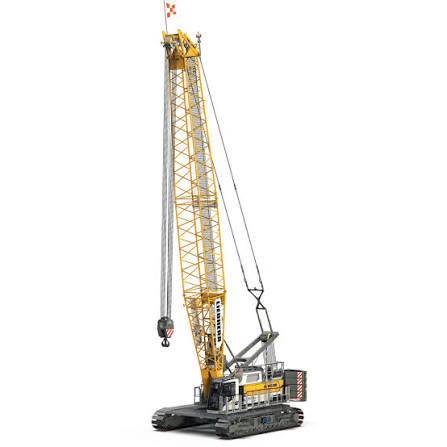

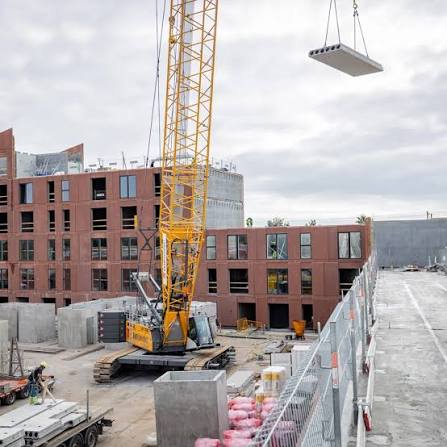

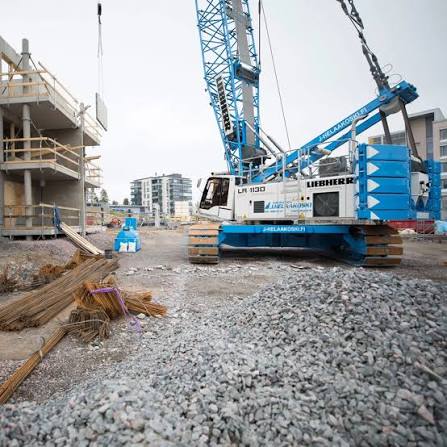

Liebherr LR 1130 Crawler Crane
1 / 5
Image 1 of 5
Image: liebherr.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Line pull - Main winches26,977 lb
Rope diameter- Main winches1 in
Drive speed - Crawlers1.4 mph
Luffing jib46 sec from 15 to 78 degrees
Luffing Line pull23,605 lb
Luffing Rope diameter1 in
Rope speed - Main wiches5.1 mph
Track pads - Crawlers39 in
Diameter - Main winches23 in

Engine

Engine specifications
Power Measured @1,700 rpm
Gross Power308.5 hp
Engine TypeLiebherr D 944 A7-04
Emission Tier LevelTier 4f

Dimensions

Dimensions specifications
Wheelbase267 in

Transmission

Transmission specifications
Working speed5,076 psi

Fluid Capacities

Fluid Capacities specifications
Fuel Tank208.7 gal
Hydraulic oil tank171.8 gal
Rope capacity - Main winches19,253 in

Boom

Boom specifications
Boom luffing - Boom winch96 sec from 15 to 86 degrees
Line pull -Boom winch48,784 lb
Rope diameter- Boom winch1 in
