Liebherr

LTM 1045-3.1

All Terrain Crane

Gross Power
367.0 hp
Transport Width
106 in
All all terrain cranes

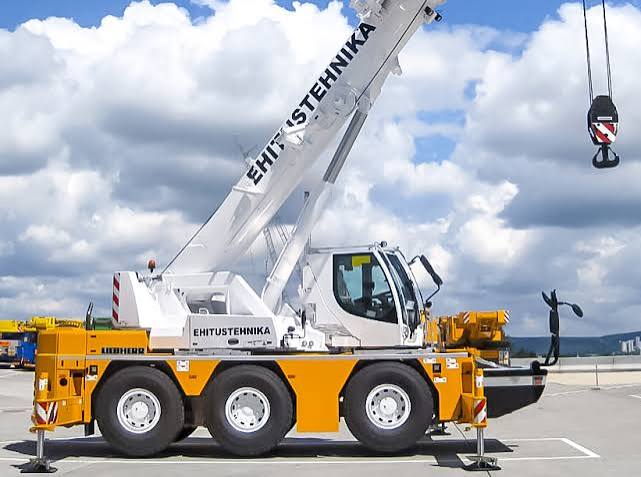

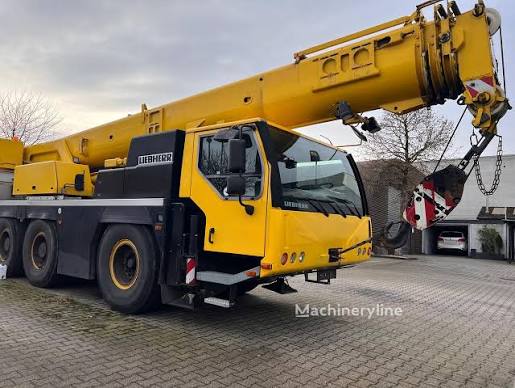

Liebherr LTM 1045-3.1 All Terrain Crane
1 / 5
Image 1 of 5
Image: gruest.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Tire Size14 R25
Carrier Fuel Capacity92.5 gal
Operating Voltage24 V
Alternator Supplied Amperage170 A

Dimensions

Dimensions specifications
Transport Width106 in
Transport Height154 in
Transport Length442 in
Upper Structure Tail Swing Radius137 in
Carrier Length359 in

Transmission

Transmission specifications
Transmission TypeZF 12-speed gear box with automatic control system AS-TRONIC
Number of Forward Gears12

Boom

Boom specifications
Number of Sections4
Max Height @ Max Raise Angle - no jib1,339 in
Min Height @ Max Raise Angle406 in
Max Elevating Angle81 °
Swing Speed2 rpm
Min Working Radius119 in
Max Working Radius1,182 in
Height1,968 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power367.0 hp
Max Torque1,720 lb-ft
MakeLiebherr
