Liebherr

LTM 1060-2

All Terrain Crane

Gross Power
362.1 hp
Max Lift Capacity
154,323 lb
Transport Width
101 in
All all terrain cranes

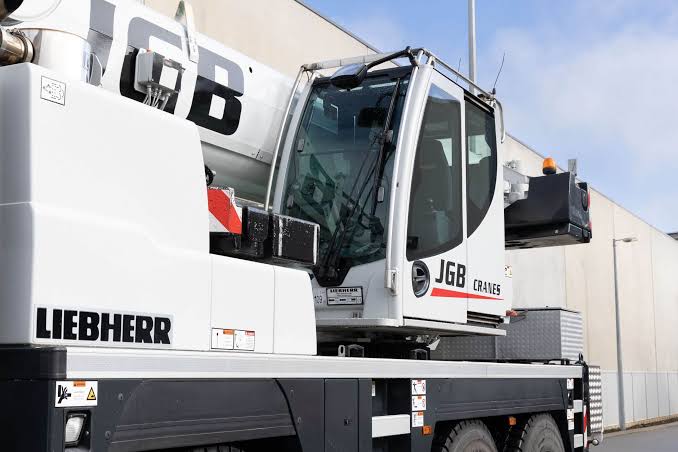

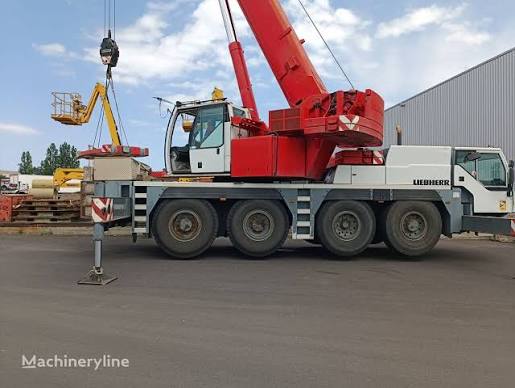

Liebherr LTM 1060-2 All Terrain Crane
1 / 5
Image 1 of 5
Image: crane-locator.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Tire Size14.00 R 25
Carrier Fuel Capacity92.5 gal
Operating Voltage24 V
Number of Axels4

Dimensions

Dimensions specifications
Ground Clearance17 in
Transport Width101 in
Transport Height149 in
Transport Length491 in
Width w/ Outriggers Extended248 in
Upper Structure Tail Swing Radius156 in
Carrier Length400 in

Transmission

Transmission specifications
Transmission TypeZF automatic
Number of Forward Gears6
Number of Reverse Gears2

Boom

Boom specifications
Max Lift Capacity154,323 lb
Number of Sections5
Max Height @ Max Raise Angle - no jib1,654 in
Min Height @ Max Raise Angle430 in
Height2,364 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power362.1 hp
Max Torque1,217 lb-ft
Torque Measured @1,400 rpm
MakeLiebherr
Power Measured @2,100 rpm

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
MakeLiebherr
