Liebherr

LTM 1070

All Terrain Crane

Gross Power
348.7 hp
Transport Width
142 in
All all terrain cranes

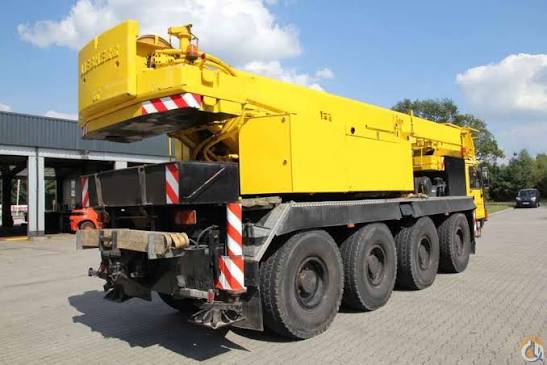

Liebherr LTM 1070 All Terrain Crane
1 / 5
Image 1 of 5
Image: northwestcraneservice.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Tire Size14.00 R 25
Carrier Fuel Capacity97.8 gal
Operating Voltage24 V
Number of Axels4
Upper Structure Fuel Capacity66.1 gal

Dimensions

Dimensions specifications
Ground Clearance17 in
Transport Width142 in
Transport Height156 in
Transport Length506 in
Width w/ Outriggers Extended284 in
Upper Structure Tail Swing Radius174 in
Carrier Length401 in

Transmission

Transmission specifications
Transmission TypePowershift
Number of Forward Gears6
Number of Reverse Gears2

Boom

Boom specifications
Number of Sections4
Max Height @ Max Raise Angle - no jib1,379 in
Min Height @ Max Raise Angle445 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power348.7 hp
Max Torque1,180 lb-ft
Torque Measured @1,500 rpm
MakeLiebherr
Power Measured @1,900 rpm

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
Gross Power119.4 hp
MakeLiebherr
Max Torque268 lb-ft
Torque Measured @2,000 rpm
Power Measured @2,600 rpm
