ATT 400
All Terrain Crane
25 specifications
1 / 5

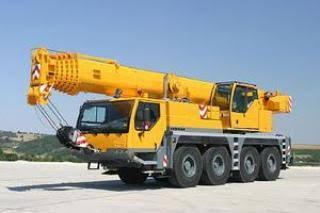

Image 1 of 5
Specifications
27 data points
Operating Specifications
| Tire Size | 16.00 R 25 |
|---|---|
| Carrier Fuel Capacity | 105.7 gal |
| Operating Voltage | 24 V |
| Number of Axels | 4 |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Transport Width | 108 in |
| Transport Height | 154 in |
| Transport Length | 497 in |
| Width w/ Outriggers Extended | 267 in |
| Upper Structure Tail Swing Radius | 146 in |
| Carrier Length | 425 in |
Transmission
| Transmission Type | ZF power shift |
|---|---|
| Number of Forward Gears | 6 |
| Number of Reverse Gears | 2 |
Boom
| Max Lift Capacity | 220,462 lb |
|---|---|
| Number of Sections | 6 |
| Max Height @ Max Raise Angle - no jib | 1,884 in |
| Min Height @ Max Raise Angle | 420 in |
| Max Elevating Angle | 83 ° |
| Height | 2,640 in |
CARRIER ENGINE
| Gross Power | 435.0 hp |
|---|---|
| Max Torque | 1,401 lb-ft |
| Torque Measured @ | 1,400 rpm |
| Make | Liebherr |
| Power Measured @ | 2,100 rpm |
| Number of cylinders | 6 |
| Aspiration | Water-cooled |
