Liebherr

LTM 1090

All Terrain Crane

Gross Power
429.2 hp
Transport Width
115 in
All all terrain cranes

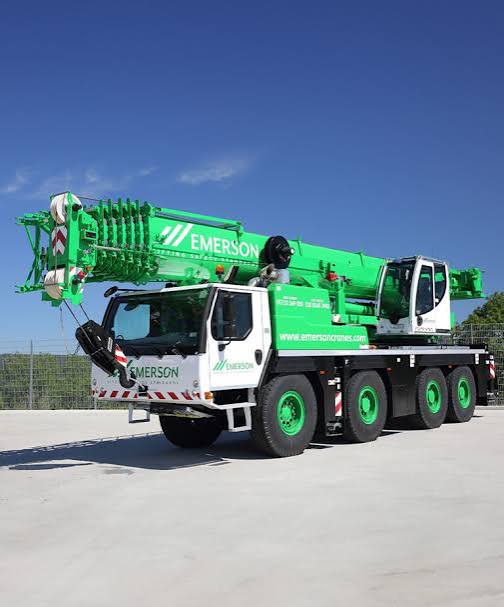

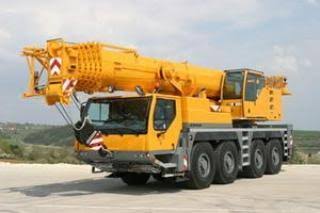

Liebherr LTM 1090 All Terrain Crane
1 / 5
Image 1 of 5
Image: aquickpickcrane.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Tire Size16.00 R 25
Carrier Fuel Capacity132.0 gal
Operating Voltage24 V
Number of Axels5
Upper Structure Fuel Capacity74.0 gal

Dimensions

Dimensions specifications
Ground Clearance18 in
Transport Width115 in
Transport Height149 in
Transport Length539 in
Width w/ Outriggers Extended291 in
Upper Structure Tail Swing Radius185 in
Carrier Length458 in

Transmission

Transmission specifications
Transmission TypeAllison CLBT 755 Automatic
Number of Forward Gears5
Number of Reverse Gears1

Boom

Boom specifications
Number of Sections5
Max Height @ Max Raise Angle - no jib1,776 in
Min Height @ Max Raise Angle468 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power429.2 hp
Max Torque1,300 lb-ft
Torque Measured @1,600 rpm
MakeLiebherr
Power Measured @2,100 rpm
Number of cylinders8

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
Gross Power154.3 hp
MakeLiebherr
Max Torque413 lb-ft
Torque Measured @1,400 rpm
Power Measured @2,100 rpm
Number of cylinders6
