Liebherr

LTM 1090-2

All Terrain Crane

Gross Power
402.4 hp
Max Lift Capacity
242,508 lb
Transport Width
109 in
All all terrain cranes

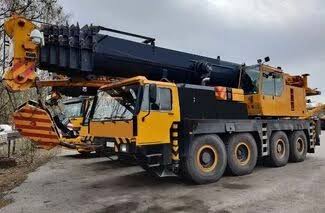

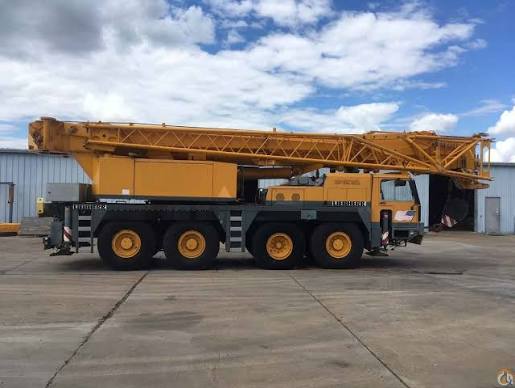

Liebherr LTM 1090-2 All Terrain Crane
1 / 5
Image 1 of 5
Image: crane-locator.com

Specifications

34 data points

Operating Specifications

Operating Specifications specifications
Tire Size14.00 R 25
Carrier Fuel Capacity79.3 gal
Operating Voltage24 V
Number of Axels4

Dimensions

Dimensions specifications
Ground Clearance16 in
Transport Width109 in
Transport Height155 in
Transport Length522 in
Width w/ Outriggers Extended284 in
Upper Structure Tail Swing Radius199 in
Carrier Length411 in

Transmission

Transmission specifications
Transmission TypeAllison Automatic
Number of Forward Gears6
Number of Reverse Gears1

Boom

Boom specifications
Max Lift Capacity242,508 lb
Number of Sections5
Max Height @ Max Raise Angle - no jib2,048 in
Min Height @ Max Raise Angle461 in
Max Elevating Angle84 °
Min Working Radius426 in
Max Working Radius749 in
Height2,796 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power402.4 hp
Max Torque1,254 lb-ft
Torque Measured @1,500 rpm
MakeLiebherr
Power Measured @2,100 rpm
Number of cylinders6

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
Gross Power161.0 hp
MakeLiebherr
Max Torque531 lb-ft
Torque Measured @1,200 rpm
Power Measured @1,800 rpm
Number of cylinders4
