Liebherr

LTM 1095-5.1

All Terrain Crane

Gross Power
503.0 hp
Max Lift Capacity
209,439 lb
Max Speed - Forward
46.7 mph
Transport Width
109 in
All all terrain cranes

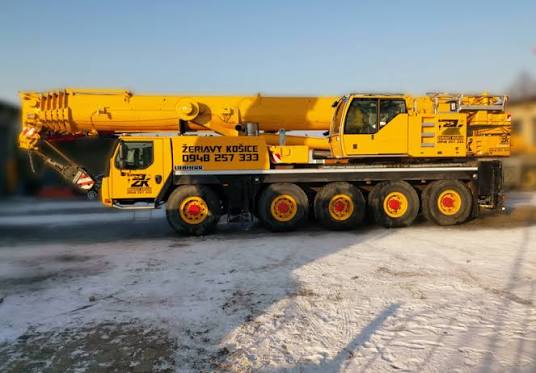

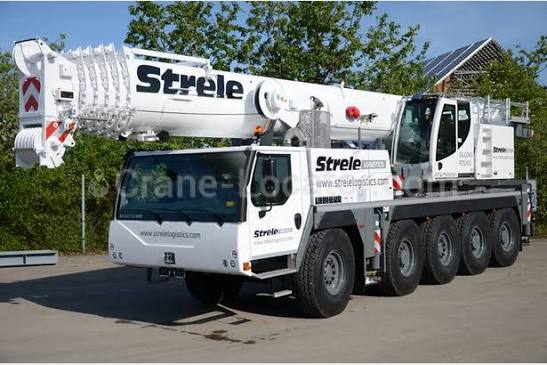

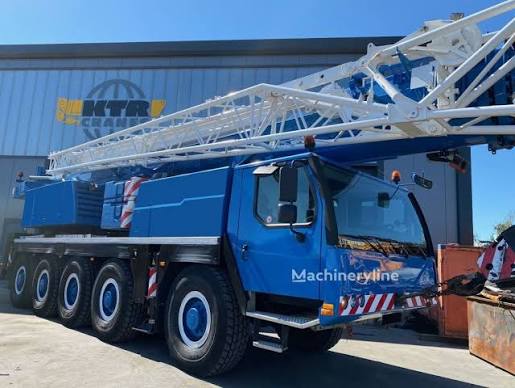

Liebherr LTM 1095-5.1 All Terrain Crane
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Tire Size14 R25
Carrier Fuel Capacity126.9 gal
Operating Voltage24 V
Number of Axels5
Alternator Supplied Amperage170 A

Dimensions

Dimensions specifications
Transport Width109 in
Transport Height156 in
Transport Length540 in
Width w/ Outriggers Extended276 in
Upper Structure Tail Swing Radius150 in
Carrier Length446 in

Transmission

Transmission specifications
Max Speed - Forward46.7 mph
Max Speed - Reverse4.7 mph
Transmission TypeZF 12-speed gear box with automatic control system AS-TRONIC
Number of Forward Gears12
Number of Reverse Gears2

General Specifications

General Specifications specifications
Lift Capacity253,531 lb
Lift Height3,228 in

Boom

Boom specifications
Max Lift Capacity209,439 lb
Number of Sections6
Max Height @ Max Raise Angle - no jib2,283 in
Min Height @ Max Raise Angle493 in
Max Elevating Angle82 °
Swing Speed2 rpm
Min Working Radius119 in
Max Working Radius2,126 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power503.0 hp
Max Torque2,350 lb-ft
MakeLiebherr
