Liebherr

LTM 1100-4.1

All Terrain Crane

Gross Power
476.0 hp
Max Speed - Forward
46.7 mph
Transport Width
109 in
All all terrain cranes

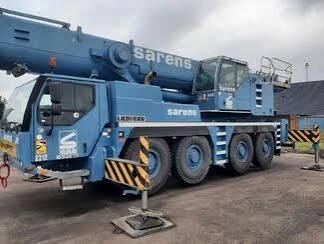

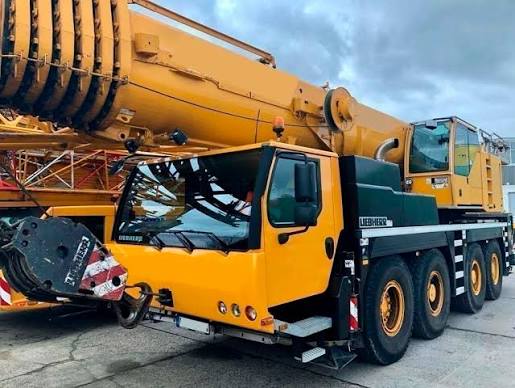

Liebherr LTM 1100-4.1 All Terrain Crane
1 / 5
Image 1 of 5
Image: richardsteel.ca

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Tire Size14 R25
Carrier Fuel Capacity105.7 gal
Operating Voltage24 V
Number of Axels4
Alternator Supplied Amperage170 A
Upper Structure Fuel Capacity70.1 gal

Dimensions

Dimensions specifications
Transport Width109 in
Transport Height156 in
Transport Length515 in
Upper Structure Tail Swing Radius162 in
Carrier Length415 in

Transmission

Transmission specifications
Max Speed - Forward46.7 mph
Max Speed - Reverse4.5 mph
Transmission TypeZF 12-speed gear box with automatic control system AS-TRONIC
Number of Forward Gears12
Number of Reverse Gears2

Boom

Boom specifications
Number of Sections6
Max Height @ Max Raise Angle - no jib2,048 in
Min Height @ Max Raise Angle454 in
Max Elevating Angle82 °
Swing Speed2 rpm
Min Working Radius100 in
Max Working Radius1,890 in
Height3,300 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power476.0 hp
Max Torque2,220 lb-ft
MakeLiebherr

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
Gross Power197.0 hp
MakeLiebherr
Max Torque679 lb-ft
