Liebherr

LTM 1100-5.1

All Terrain Crane

Gross Power
536.5 hp
Transport Width
109 in
All all terrain cranes

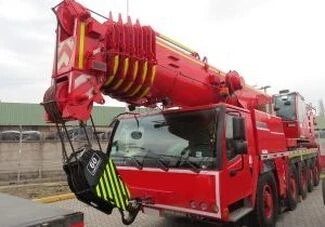

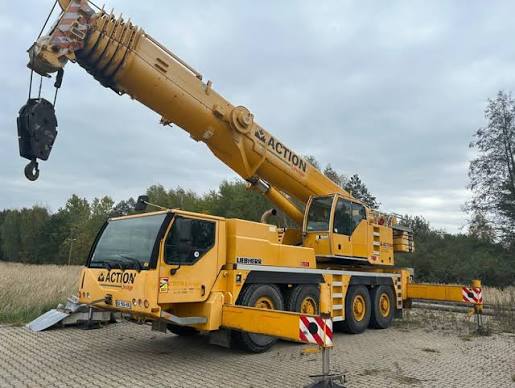

Liebherr LTM 1100-5.1 All Terrain Crane
1 / 5
Image 1 of 5
Image: thecraneclub.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Tire Size14.00 R 25
Carrier Fuel Capacity132.1 gal
Operating Voltage24 V
Number of Axels5
Alternator Supplied Amperage170 A
Upper Structure Fuel Capacity74.0 gal

Dimensions

Dimensions specifications
Ground Clearance16 in
Transport Width109 in
Transport Height156 in
Transport Length538 in
Width w/ Outriggers Extended276 in
Upper Structure Tail Swing Radius156 in
Carrier Length455 in

Transmission

Transmission specifications
Transmission TypeZF AS-TRONIC

Boom

Boom specifications
Number of Sections6
Max Height @ Max Raise Angle - no jib2,048 in
Min Height @ Max Raise Angle454 in
Max Elevating Angle82 °

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power536.5 hp
Max Torque1,844 lb-ft
Torque Measured @1,400 rpm
MakeLiebherr
Power Measured @2,000 rpm

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
Gross Power199.9 hp
MakeLiebherr
Max Torque657 lb-ft
Torque Measured @1,150 rpm
Power Measured @1,800 rpm
