Liebherr

LTM 1100-5.2

All Terrain Crane

Max Lift Capacity
209,439 lb
Max Speed - Forward
46.7 mph
Transport Width
109 in
All all terrain cranes

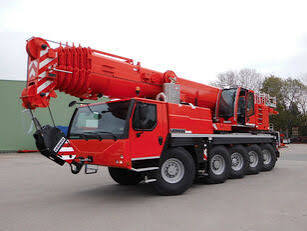

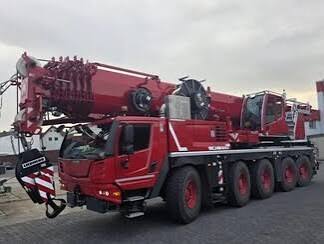

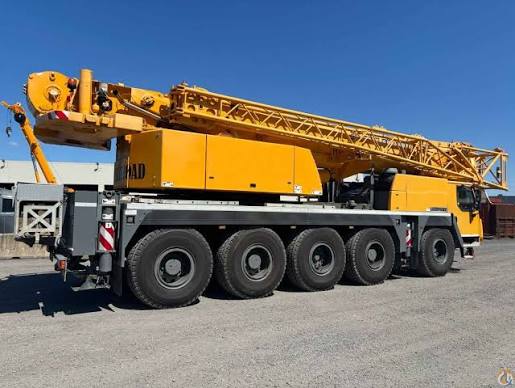

Liebherr LTM 1100-5.2 All Terrain Crane
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Tire Size14R25
Carrier Fuel Capacity129.5 gal
Operating Voltage24 V
Alternator Supplied Amperage170 A
Upper Structure Fuel Capacity67.7 gal

Dimensions

Dimensions specifications
Transport Width109 in
Transport Height156 in
Transport Length538 in
Upper Structure Tail Swing Radius151 in
Carrier Length451 in

Transmission

Transmission specifications
Max Speed - Forward46.7 mph
Max Speed - Reverse4.5 mph
Number of Forward Gears12
Number of Reverse Gears2

General Specifications

General Specifications specifications
Lift Capacity264,554 lb
Lift Height3,312 in

Boom

Boom specifications
Max Lift Capacity209,439 lb
Number of Sections6
Max Height @ Max Raise Angle - no jib2,048 in
Min Height @ Max Raise Angle454 in
Max Elevating Angle82 °
Swing Speed2 rpm
Min Working Radius119 in
Max Working Radius1,890 in

CARRIER ENGINE

CARRIER ENGINE specifications
Net Power503.0 hp
Max Torque1,726 lb-ft
MakeLiebherr

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
Net Power197.0 hp
MakeLiebherr
Max Torque679 lb-ft
