Liebherr

LTM 1120

All Terrain Crane

Gross Power
473.4 hp
Transport Width
119 in
All all terrain cranes

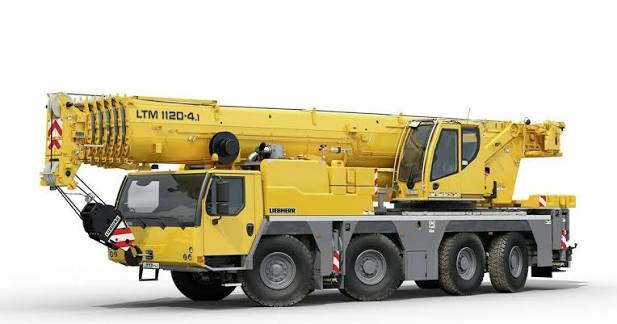

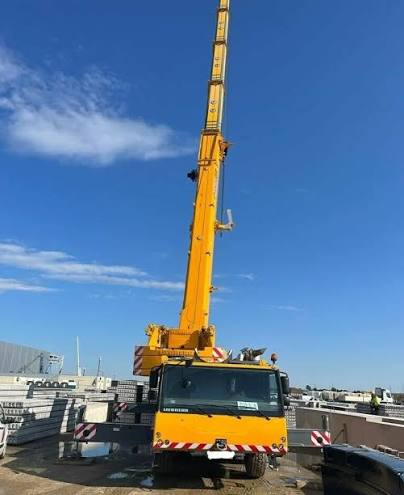

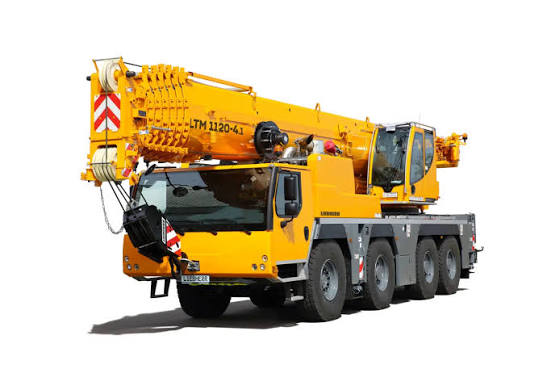

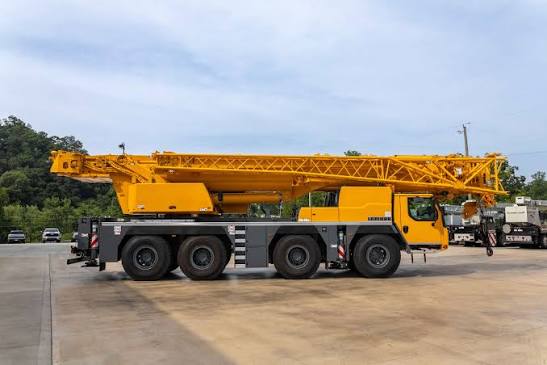

Liebherr LTM 1120 All Terrain Crane
1 / 5
Image 1 of 5
Image: borgercranes.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Tire Size14.00 R 25
Carrier Fuel Capacity185.0 gal
Operating Voltage24 V
Number of Axels5
Upper Structure Fuel Capacity74.0 gal

Dimensions

Dimensions specifications
Ground Clearance15 in
Transport Width119 in
Transport Height152 in
Transport Length589 in
Width w/ Outriggers Extended316 in
Upper Structure Tail Swing Radius190 in
Carrier Length514 in

Transmission

Transmission specifications
Transmission TypeAllison Automatic Transmission
Number of Forward Gears5
Number of Reverse Gears1

Boom

Boom specifications
Number of Sections4
Max Height @ Max Raise Angle - no jib1,654 in
Min Height @ Max Raise Angle524 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power473.4 hp
Max Torque1,475 lb-ft
Torque Measured @1,600 rpm
MakeLiebherr
Power Measured @2,100 rpm

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
Gross Power162.3 hp
MakeLiebherr
Max Torque413 lb-ft
Torque Measured @1,500 rpm
Power Measured @2,300 rpm
