Liebherr

LTM 1120-1

All Terrain Crane

Gross Power
544.0 hp
Max Lift Capacity
288,805 lb
Transport Width
109 in
All all terrain cranes

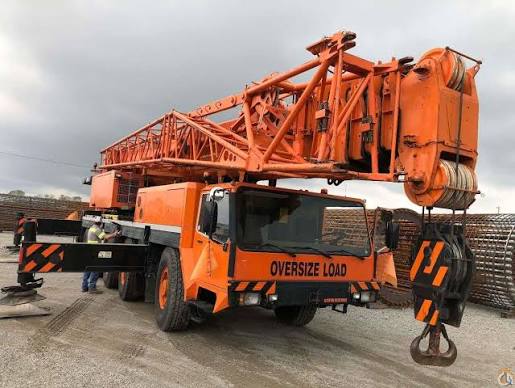

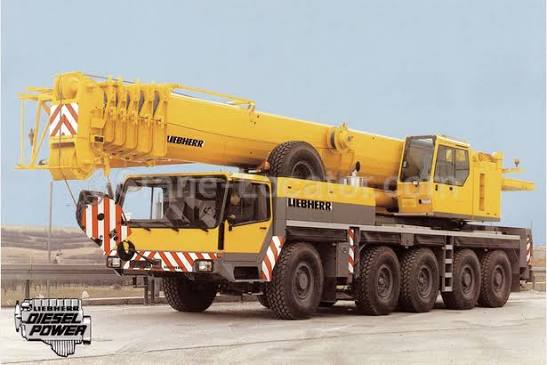

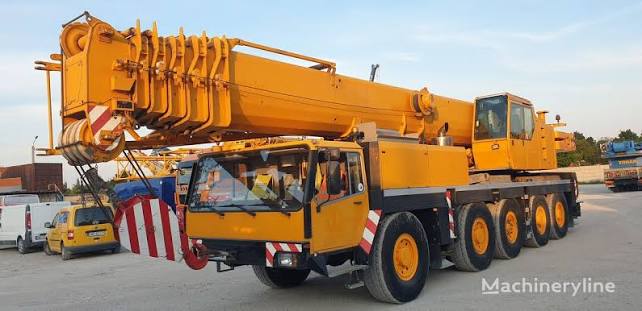

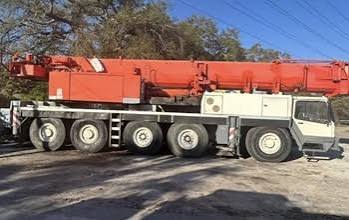

Liebherr LTM 1120-1 All Terrain Crane
1 / 5
Image 1 of 5
Image: borgercranes.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Tire Size16.00 R 25
Carrier Fuel Capacity132.0 gal
Operating Voltage24 V
Number of Axels5

Dimensions

Dimensions specifications
Ground Clearance19 in
Transport Width109 in
Transport Height157 in
Transport Length594 in
Width w/ Outriggers Extended296 in
Upper Structure Tail Swing Radius162 in
Carrier Length500 in

Transmission

Transmission specifications
Transmission TypeAllison Automatic Transmission
Number of Forward Gears5
Number of Reverse Gears1

Boom

Boom specifications
Max Lift Capacity288,805 lb
Number of Sections5
Max Height @ Max Raise Angle - no jib2,208 in
Min Height @ Max Raise Angle492 in
Swing Speed2 rpm
Height3,324 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power544.0 hp
Max Torque1,210 lb-ft
Torque Measured @1,575 rpm
MakeLiebherr
Power Measured @2,100 rpm

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
Gross Power161.0 hp
MakeLiebherr
Max Torque529 lb-ft
Torque Measured @1,200 rpm
Power Measured @1,800 rpm
