Liebherr

LTM 1130-5.1

All Terrain Crane

Max Lift Capacity
286,601 lb
Max Speed - Forward
46.7 mph
Transport Width
109 in
All all terrain cranes

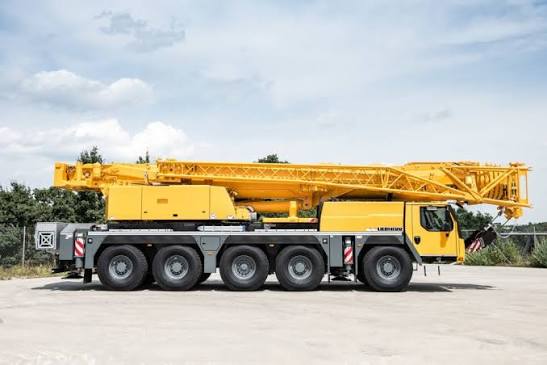

Liebherr LTM 1130-5.1 All Terrain Crane
1 / 5
Image 1 of 5
Image: jjcurran.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Tire Size14R25
Carrier Fuel Capacity126.9 gal
Operating Voltage24 V
Alternator Supplied Amperage170 A
Upper Structure Fuel Capacity66.1 gal

Dimensions

Dimensions specifications
Transport Width109 in
Transport Height156 in
Transport Length583 in
Upper Structure Tail Swing Radius166 in
Carrier Length483 in

Transmission

Transmission specifications
Max Speed - Forward46.7 mph
Max Speed - Reverse454.9 mph
Transmission TypeZF 12-speed gear box with automatic control system AS-TRONIC
Number of Forward Gears12
Number of Reverse Gears2

General Specifications

General Specifications specifications
Lift Capacity341,716 lb
Lift Height3,588 in

Boom

Boom specifications
Max Lift Capacity286,601 lb
Number of Sections6
Max Height @ Max Raise Angle - no jib2,363 in
Min Height @ Max Raise Angle500 in
Max Elevating Angle82 °
Swing Speed2 rpm
Min Working Radius119 in
Max Working Radius2,206 in

CARRIER ENGINE

CARRIER ENGINE specifications
Net Power503.0 hp
Max Torque1,737 lb-ft
MakeLiebherr

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
Net Power197.0 hp
MakeLiebherr
Max Torque679 lb-ft
