Liebherr

LTM 1140

All Terrain Crane

Gross Power
414.4 hp
Max Speed - Forward
39.2 mph
Transport Width
119 in
All all terrain cranes

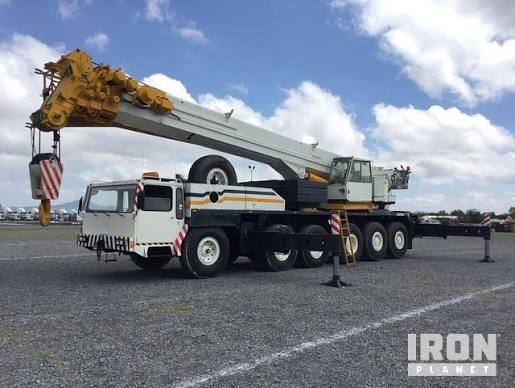

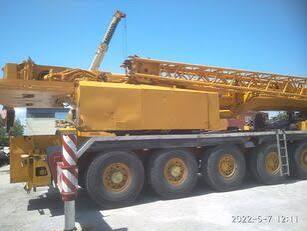

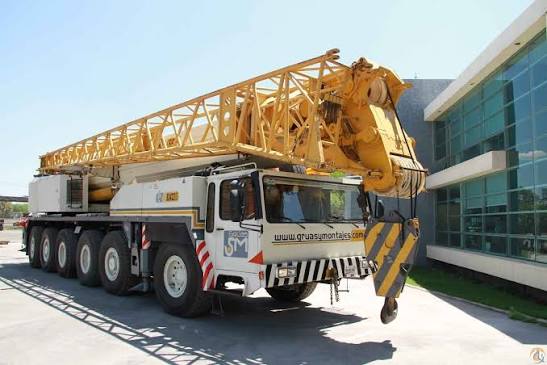

Liebherr LTM 1140 All Terrain Crane
1 / 5
Image 1 of 5
Image: machineryline-ge.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Tire Size14.00R24
Carrier Fuel Capacity132.1 gal
Operating Voltage24 V
Number of Axels6
Upper Structure Fuel Capacity79.3 gal

Dimensions

Dimensions specifications
Transport Width119 in
Transport Height157 in
Transport Length660 in
Width w/ Outriggers Extended340 in
Upper Structure Tail Swing Radius198 in
Carrier Length558 in

Transmission

Transmission specifications
Max Speed - Forward39.2 mph
Max Speed - Reverse3.8 mph
Transmission TypeAllison CLBT 754
Number of Forward Gears5
Number of Reverse Gears1

Boom

Boom specifications
Number of Sections4
Max Height @ Max Raise Angle - no jib1,772 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power414.4 hp
Max Torque1,099 lb-ft
Torque Measured @1,200 rpm
MakeLiebherr
Power Measured @2,300 rpm

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
Gross Power175.7 hp
MakeLiebherr
Max Torque448 lb-ft
Torque Measured @1,600 rpm
Power Measured @2,200 rpm
