Liebherr

LTM 1160

All Terrain Crane

Gross Power
523.0 hp
Transport Width
119 in
All all terrain cranes

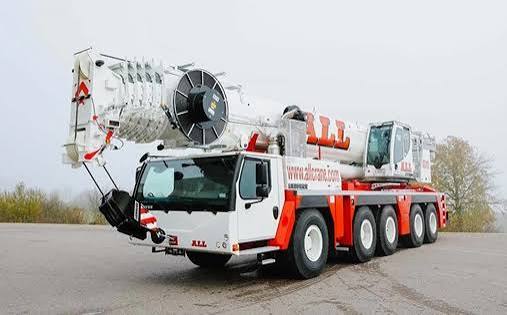

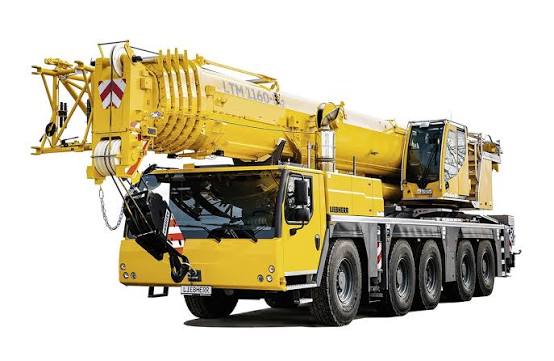

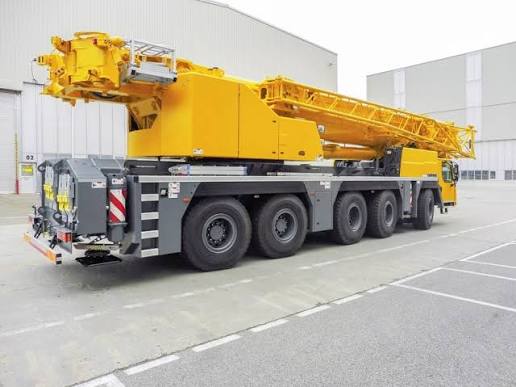

Liebherr LTM 1160 All Terrain Crane
1 / 5
Image 1 of 5
Image: stevensoncrane.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Tire Size14.00 R 24 x VC
Carrier Fuel Capacity132.1 gal
Operating Voltage24 V
Upper Structure Fuel Capacity79.3 gal

Dimensions

Dimensions specifications
Transport Width119 in
Transport Height157 in
Transport Length660 in
Width w/ Outriggers Extended340 in
Upper Structure Tail Swing Radius205 in
Carrier Length558 in

Transmission

Transmission specifications
Transmission TypeAllison CLBT 754 Automatic
Number of Forward Gears5
Number of Reverse Gears1

Boom

Boom specifications
Number of Sections4
Max Height @ Max Raise Angle - no jib1,772 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power523.0 hp
Max Torque1,533 lb-ft
Torque Measured @1,400 rpm
MakeLiebherr
Power Measured @2,300 rpm

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
Gross Power177.1 hp
MakeLiebherr
Max Torque448 lb-ft
Torque Measured @1,600 rpm
Power Measured @2,200 rpm
