Liebherr

LTM 1160-5.1

All Terrain Crane

Max Lift Capacity
352,740 lb
Max Speed - Forward
46.7 mph
Transport Width
198 in
All all terrain cranes

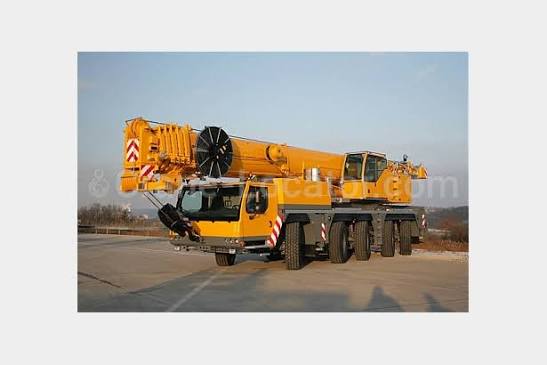

Liebherr LTM 1160-5.1 All Terrain Crane
1 / 5
Image 1 of 5
Image: gruest.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Tire Size14R25
Carrier Fuel Capacity126.9 gal
Operating Voltage24 V
Alternator Supplied Amperage170 A
Upper Structure Fuel Capacity75.3 gal

Dimensions

Dimensions specifications
Transport Width198 in
Transport Height156 in
Transport Length592 in
Upper Structure Tail Swing Radius165 in
Carrier Length487 in

Transmission

Transmission specifications
Max Speed - Forward46.7 mph
Max Speed - Reverse4.5 mph
Transmission TypeZF 12-speed gear box with automatic control system AS-TRONIC
Number of Forward Gears12
Number of Reverse Gears2

Boom

Boom specifications
Max Lift Capacity352,740 lb
Number of Sections5
Max Height @ Max Raise Angle - no jib2,111 in
Min Height @ Max Raise Angle512 in
Max Elevating Angle82 °
Swing Speed2 rpm
Min Working Radius119 in
Max Working Radius2,283 in

CARRIER ENGINE

CARRIER ENGINE specifications
Net Power503.0 hp
Max Torque1,737 lb-ft
MakeLiebherr

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
Net Power197.0 hp
MakeLiebherr
Max Torque679 lb-ft
