Liebherr

LTM 1200-5.1

All Terrain Crane

Max Lift Capacity
440,925 lb
Max Speed - Forward
46.7 mph
Transport Width
217 in
All all terrain cranes

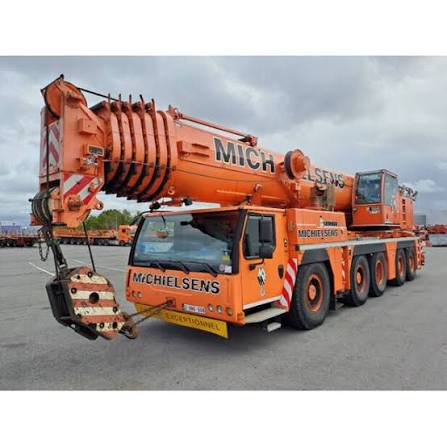

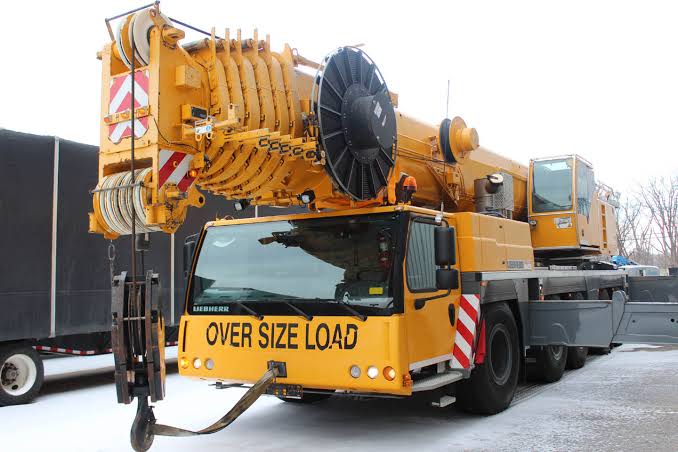

Liebherr LTM 1200-5.1 All Terrain Crane
1 / 5
Image 1 of 5
Image: gruest.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Tire Size14R25
Carrier Fuel Capacity129.5 gal
Operating Voltage24 V
Alternator Supplied Amperage170 A
Upper Structure Fuel Capacity66.1 gal

Dimensions

Dimensions specifications
Transport Width217 in
Transport Height156 in
Transport Length602 in
Upper Structure Tail Swing Radius156 in
Carrier Length524 in

Transmission

Transmission specifications
Max Speed - Forward46.7 mph
Max Speed - Reverse4.5 mph
Transmission TypeZF 12-speed ger box with automatic control system AS-TRONIC
Number of Forward Gears12
Number of Reverse Gears2

General Specifications

General Specifications specifications
Lift Capacity529,109 lb
Lift Height3,972 in

Boom

Boom specifications
Max Lift Capacity440,925 lb
Number of Sections7
Max Height @ Max Raise Angle - no jib2,835 in
Min Height @ Max Raise Angle521 in
Max Elevating Angle82 °
Swing Speed1 rpm
Min Working Radius119 in
Max Working Radius2,599 in

CARRIER ENGINE

CARRIER ENGINE specifications
Net Power503.0 hp
Max Torque1,637 lb-ft
MakeLiebherr

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
Net Power197.0 hp
MakeLiebherr
Max Torque679 lb-ft
