Link Belt

138 HSL

Crawler Crane

Power Measured @
2,000 rpm
All crawler cranes

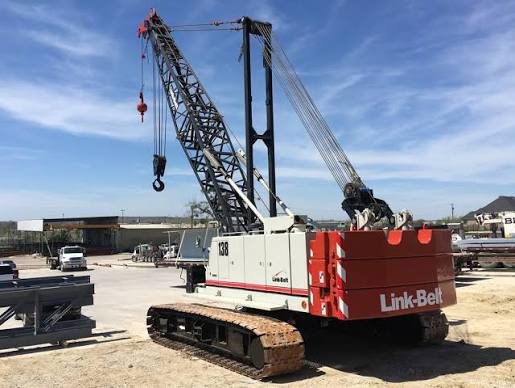

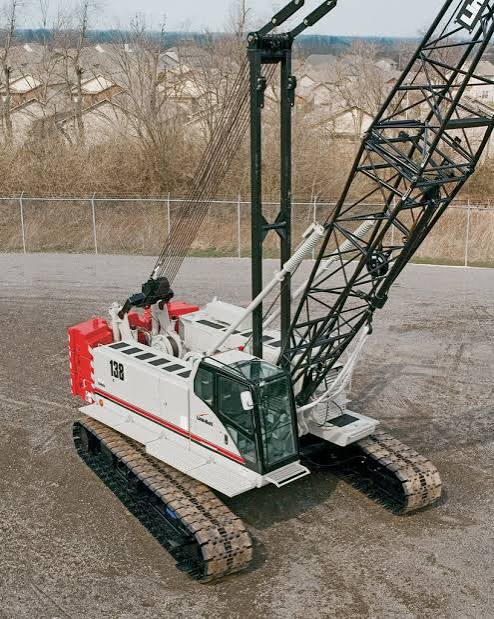

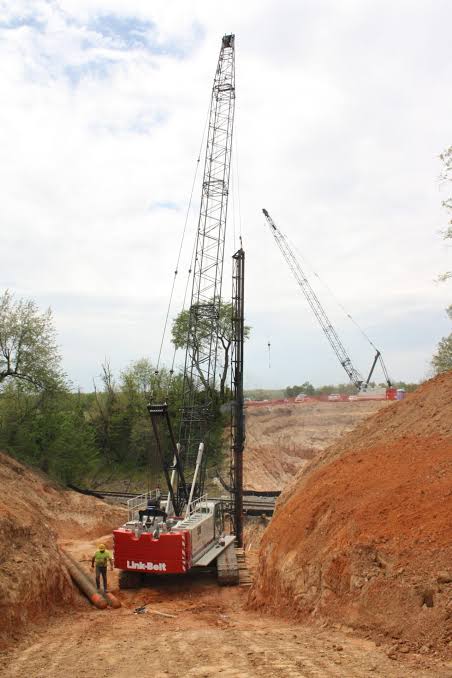

Link Belt 138 HSL Crawler Crane
1 / 5
Image 1 of 5
Image: linkbelt.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity121.6 gal
Hydraulic System Fluid Capacity66.1 gal

Engine

Engine specifications
Engine ModelQSB6.7
Displacement415 in³
Power Measured @2,000 rpm
Gross Power270.0 hp
Number of Cylinders6
Torque Measured @1,500 rpm
Max Torque730 lb-ft
Engine MakeCummins

Dimensions

Dimensions specifications
Ground Clearance16 in
Tail Swing Radius170 in
Transport Height132 in
Transport Length451 in

Transmission

Transmission specifications
Max Speed1.1 mph

Undercarriage

Undercarriage specifications
Width of Shoes36 in
Number of Shoes per Side52
Number of Track Rollers per Side11
Track Gauge169 in

Boom

Boom specifications
Swing Speed5 rpm
Max Elevating Angle80 °
Min Working Radius126 in
