Link Belt

ATC-3210

All Terrain Crane

Gross Power
555.0 hp
Transport Width
106 in
All all terrain cranes

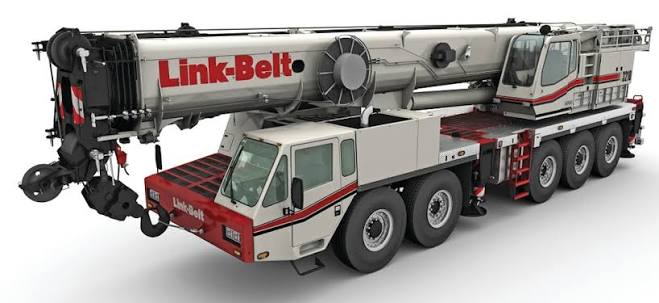

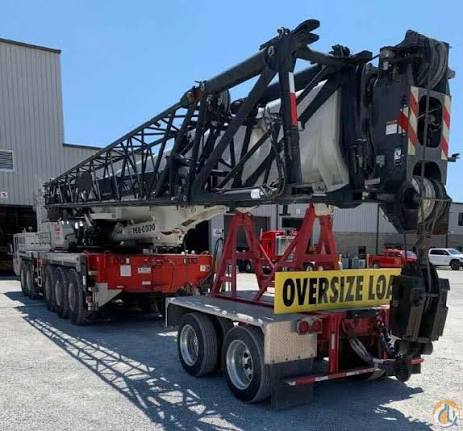

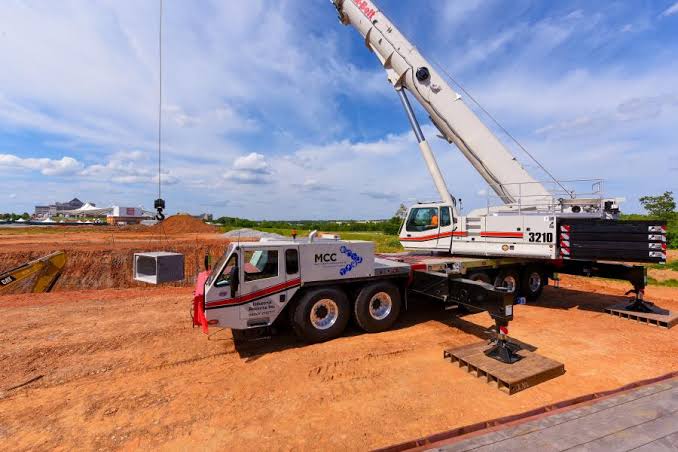

Link Belt ATC-3210 All Terrain Crane
1 / 5
Image 1 of 5
Image: linkbelt.com

Specifications

28 data points

Dimensions

Dimensions specifications
Ground Clearance15 in
Transport Width106 in
Transport Height155 in
Transport Length644 in
Width w/ Outriggers Extended306 in
Carrier Length536 in

Transmission

Transmission specifications
Number of Forward Gears12
Number of Reverse Gears2

General Specifications

General Specifications specifications
Lift Capacity462,970 lb
Lift Height3,920 in

Boom

Boom specifications
Number of Sections6
Max Height @ Max Raise Angle - no jib2,531 in
Min Height @ Max Raise Angle1,249 in
Max Elevating Angle83 °

CARRIER ENGINE

CARRIER ENGINE specifications
Net Power520.0 hp
Gross Power555.0 hp
Displacement9,764 in³
Max Torque1,744 lb-ft
Torque Measured @1,400 rpm
MakeLink-Belt
Power Measured @1,800 rpm

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
Net Power564.0 hp
Gross Power550.0 hp
Displacement2,771 in³
MakeLink-Belt
Max Torque1,850 lb-ft
Torque Measured @1,200 rpm
Power Measured @2,000 rpm
