Link Belt

HTC-86110

Truck Crane

Displacement
915 in³
All truck cranes

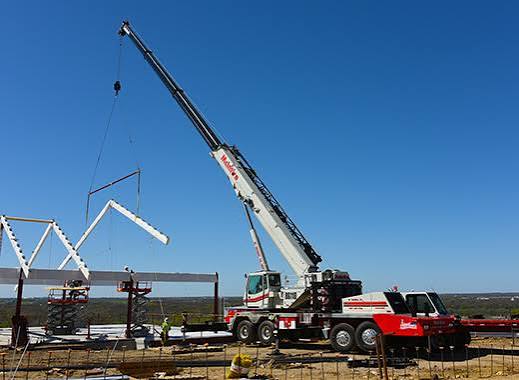

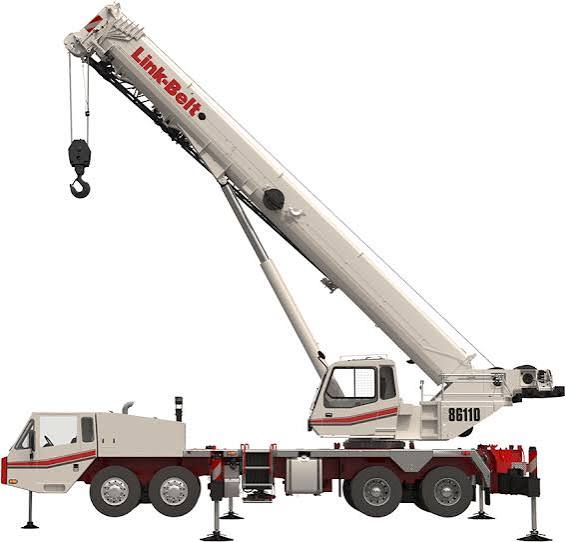

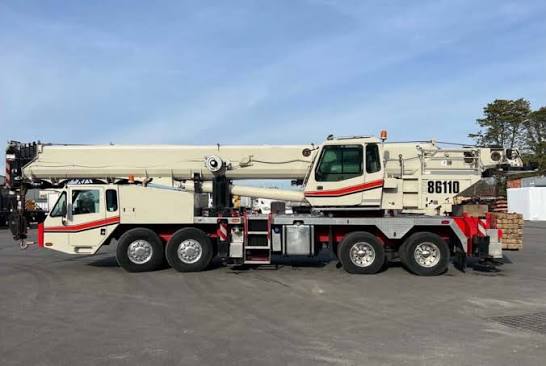

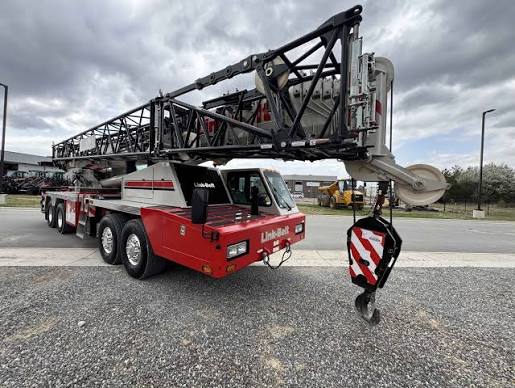

Link Belt HTC-86110 Truck Crane
1 / 5
Image 1 of 5
Image: linkbeltma.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Tire SizeFront - 445/65R22.5 Rear - 315/80R22.5
Fuel Capacity95.0 gal
DEF tank capacity10.0 gal
Hydraulic System Fluid Capacity144.0 gal
Hydraulic Pump Flow Capacity188.0 gal/min

Dimensions

Dimensions specifications
Ground Clearance102 in
Wheelbase282 in
Transport Width121 in
Transport Height138 in
Transport Length552 in
Width w/ Outriggers Extended316 in
Carrier Length476 in

Transmission

Transmission specifications
Number of Forward Gears12
Number of Reverse Gears2

Boom

Boom specifications
Max Height @ Max Raise Angle - no jib2,076 in
Min Height @ Max Raise Angle1,188 in
Max Elevating Angle80 °
Number of Sections6

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power480.0 hp
Displacement915 in³
Power Measured @1,800 rpm
MakeLink-Belt
Max Torque1,550 lb-ft
Torque Measured @1,400 rpm

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
Gross Power450.0 hp
Displacement729 in³
MakeLink-Belt
Power Measured @1,800 rpm
Torque Measured @1,200 rpm
Max Torque1,550 lb-ft
