Link Belt

HTT-8675 II

Truck Crane

Displacement
915 in³
All truck cranes

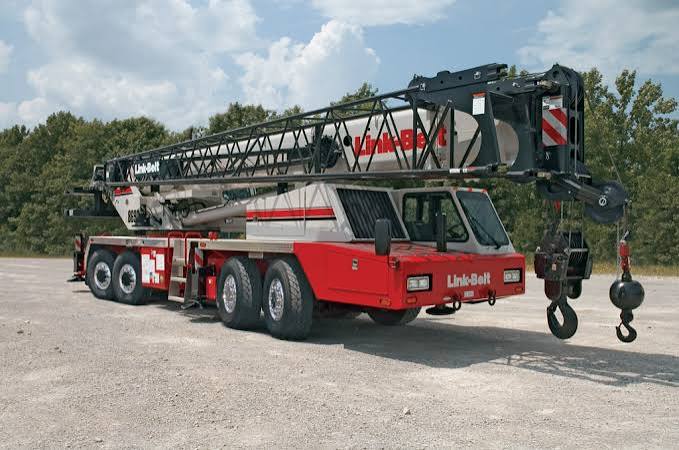

Link Belt HTT-8675 II Truck Crane
1 / 5
Image 1 of 5
Image: linkbelt.com

Specifications

34 data points

Operating Specifications

Operating Specifications specifications
Operating Voltage12 V
Upper Structure Hydraulic System Fluid Capacity144.1 gal
Fuel Capacity80.0 gal
DEF tank capacity10.0 gal
Ground Pressure40 psi

Dimensions

Dimensions specifications
Ground Clearance131 in
Wheelbase277 in
Transport Width178 in
Transport Height138 in
Transport Length583 in
Width w/ Outriggers Extended312 in
Upper Structure Tail Swing Radius167 in
Carrier Length163 in

Transmission

Transmission specifications
Number of Forward Gears12
Number of Reverse Gears2

Tires & Wheels

Tires & Wheels specifications
TiresFront 445/65R22.5 / Rear 445/65R22.5

Boom

Boom specifications
Max Height @ Max Raise Angle - no jib1,632 in
Min Height @ Max Raise Angle1,032 in
Max Elevating Angle80 °
Number of Sections4

CARRIER ENGINE

CARRIER ENGINE specifications
Net Power480.0 hp
Gross Power450.0 hp
Displacement915 in³
Power Measured @1,800 rpm
MakeLink-Belt
Max Torque1,550 lb-ft
Torque Measured @1,400 rpm

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
Net Power450.0 hp
Gross Power414.0 hp
Displacement726 in³
MakeLink-Belt
Power Measured @1,800 rpm
Torque Measured @1,200 rpm
Max Torque1,550 lb-ft
