Link Belt

LS-108B

Crawler Crane

Power Measured @
1,840 rpm
All crawler cranes

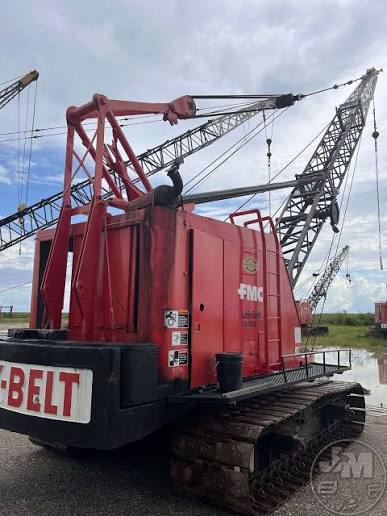

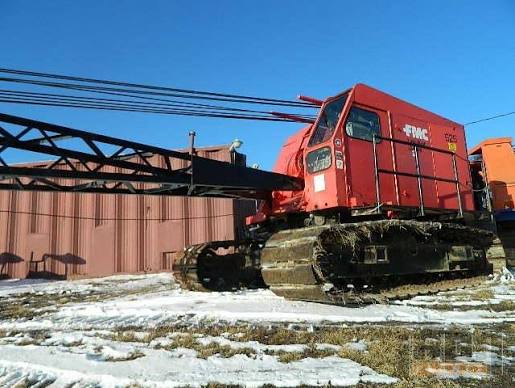

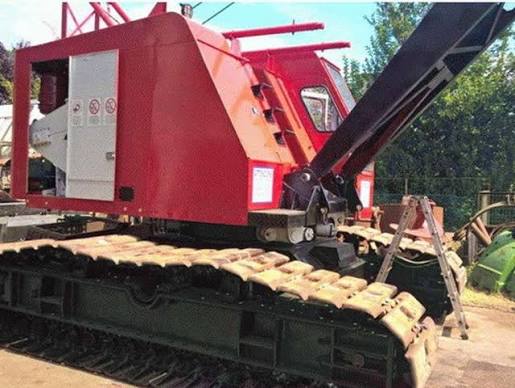

Link Belt LS-108B Crawler Crane
1 / 5
Image 1 of 5
Image: cranenetwork.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity60.0 gal
Operating Voltage12 V

Engine

Engine specifications
Engine ModelGM4-71N
Displacement284 in³
Power Measured @1,840 rpm
Net Power110.0 hp
Number of Cylinders4
Torque Measured @1,200 rpm
Max Torque351 lb-ft
Bore4 in
Stroke5 in

Dimensions

Dimensions specifications
Ground Clearance37 in
Tail Swing Radius137 in
Transport Width132 in
Transport Height313 in

Transmission

Transmission specifications
Max Speed1.7 mph

Undercarriage

Undercarriage specifications
Width of Shoes24 in

Boom

Boom specifications
Min Height @ Max Raise Angle480 in
Swing Speed4 rpm
Max Height @ Max Raise Angle - no jib1,560 in
