Link Belt

LS-108C

Crawler Crane

Power Measured @
1,850 rpm
All crawler cranes

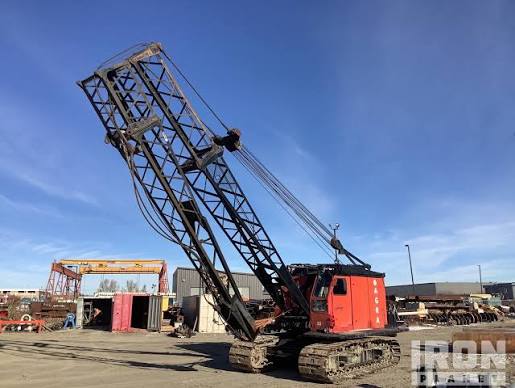

Link Belt LS-108C Crawler Crane
1 / 5
Image 1 of 5
Image: marketbook.ug

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity66.0 gal

Engine

Engine specifications
Engine Model6SA1
Displacement513 in³
Power Measured @1,850 rpm
Net Power120.0 hp
Number of Cylinders6
Torque Measured @1,200 rpm
Max Torque376 lb-ft
Engine MakeIsuzu
Stroke5 in
Bore5 in

Dimensions

Dimensions specifications
Ground Clearance12 in
Tail Swing Radius149 in
Transport Width106 in
Transport Height187 in

Transmission

Transmission specifications
Max Speed1.2 mph

Undercarriage

Undercarriage specifications
Width of Shoes30 in
Number of Track Rollers per Side8

Boom

Boom specifications
Min Height @ Max Raise Angle480 in
Swing Speed4 rpm
Max Height @ Max Raise Angle - no jib1,200 in
