Link Belt

LS-118

Crawler Crane

Power Measured @
2,100 rpm
All crawler cranes

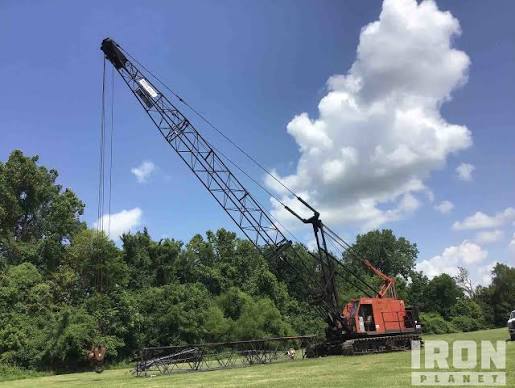

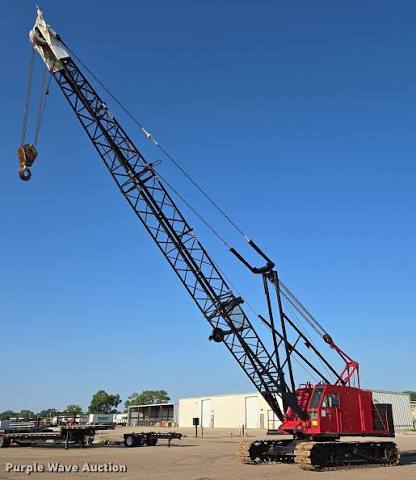

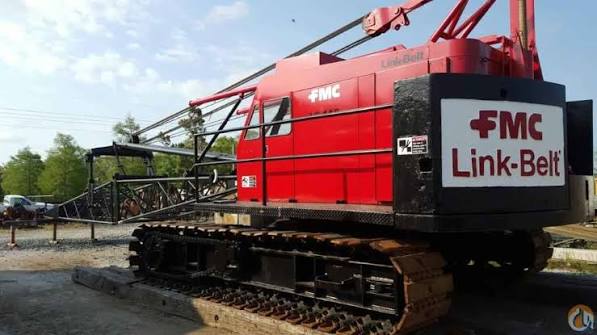

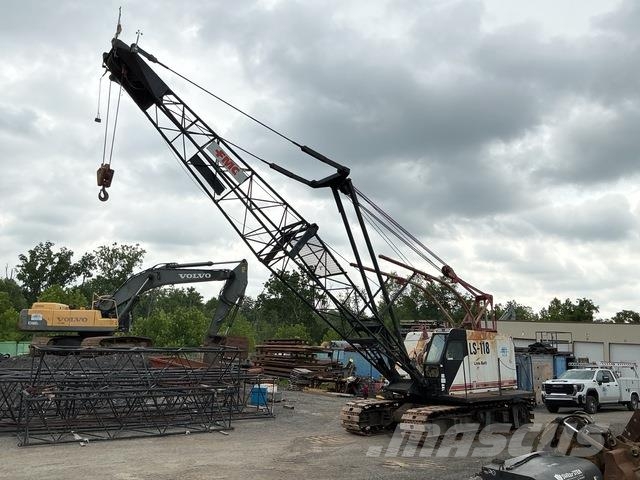

Link Belt LS-118 Crawler Crane
1 / 5
Image 1 of 5
Image: mascus.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity58.0 gal
Operating Voltage12 V

Engine

Engine specifications
Engine ModelGM6-71N
Displacement426 in³
Power Measured @2,100 rpm
Net Power178.0 hp
Number of Cylinders6
Torque Measured @1,200 rpm
Max Torque531 lb-ft
Stroke5 in
Bore4 in

Dimensions

Dimensions specifications
Ground Clearance15 in
Tail Swing Radius141 in
Transport Width108 in
Transport Height328 in
Operating Width150 in

Transmission

Transmission specifications
Max Speed2.2 mph

Undercarriage

Undercarriage specifications
Width of Shoes30 in
Number of Shoes per Side47
Ground Pressure8 psi

Boom

Boom specifications
Min Height @ Max Raise Angle480 in
Swing Speed4 rpm
Max Height @ Max Raise Angle - no jib1,921 in
