Link Belt

LS-208H

Crawler Crane

Power Measured @
2,000 rpm
All crawler cranes

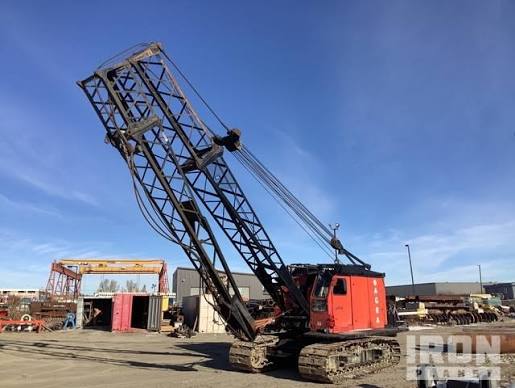

Link Belt LS-208H Crawler Crane
1 / 5
Image 1 of 5
Image: cranenetwork.com

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity118.9 gal
Operating Voltage24 V
Hydraulic System Fluid Capacity79.3 gal

Engine

Engine specifications
Engine Model6D24-TEB
Displacement729 in³
Power Measured @2,000 rpm
Net Power263.0 hp
Number of Cylinders6
Torque Measured @1,400 rpm
Max Torque746 lb-ft
Engine MakeMitsubishi
Bore5 in
Stroke6 in

Dimensions

Dimensions specifications
Ground Clearance17 in
Tail Swing Radius162 in
Transport Width144 in
Transport Height214 in
Gradeability30.0 %

Transmission

Transmission specifications
Max Speed1.1 mph

Undercarriage

Undercarriage specifications
Width of Shoes36 in
Number of Shoes per Side50
Number of Track Rollers per Side10
Ground Pressure8 psi

Boom

Boom specifications
Min Height @ Max Raise Angle480 in
Swing Speed3 rpm
Max Height @ Max Raise Angle - no jib1,800 in
