Link Belt
Liebherr
LR-1110

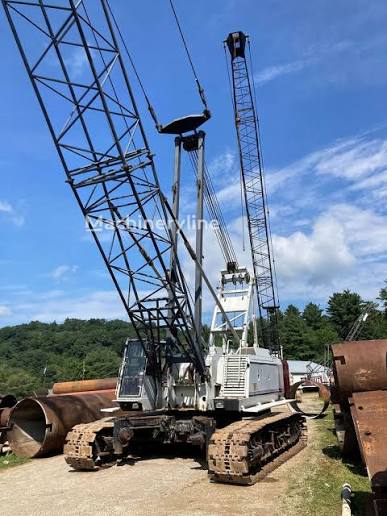

Crawler Crane
Specifications pending
1 / 5
Image 1 of 5
Specifications
22 data points
Operating Specifications
| Fuel Capacity | 118.9 gal |
|---|---|
| Operating Voltage | 25 V |
| Hydraulic System Fluid Capacity | 79.3 gal |
Engine
| Engine Model | 6D24-TEB |
|---|---|
| Displacement | 729 in³ |
| Power Measured @ | 2,000 rpm |
| Net Power | 263.0 hp |
| Number of Cylinders | 6 |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 746 lb-ft |
| Engine Make | Mitsubishi |
| Stroke | 6 in |
| Bore | 5 in |
Dimensions
| Ground Clearance | 55 in |
|---|---|
| Tail Swing Radius | 189 in |
| Transport Width | 134 in |
| Transport Height | 245 in |
| Gradeability | 30.0 % |
Transmission
| Max Speed | 0.9 mph |
|---|
Undercarriage
| Width of Shoes | 36 in |
|---|---|
| Number of Shoes per Side | 46 |
| Number of Track Rollers per Side | 9 |
