Link Belt

LS-318

Crawler Crane

Power Measured @
1,915 rpm
All crawler cranes

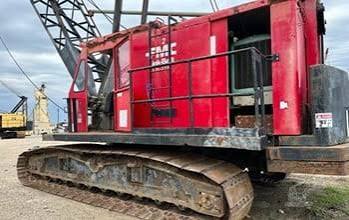

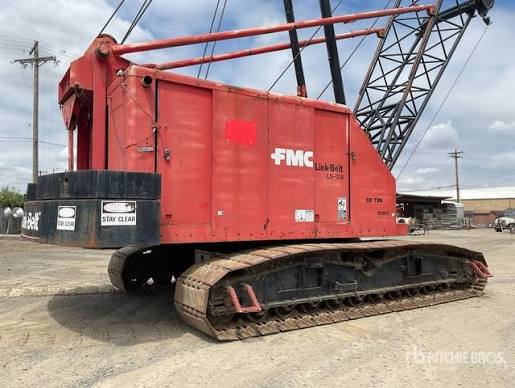

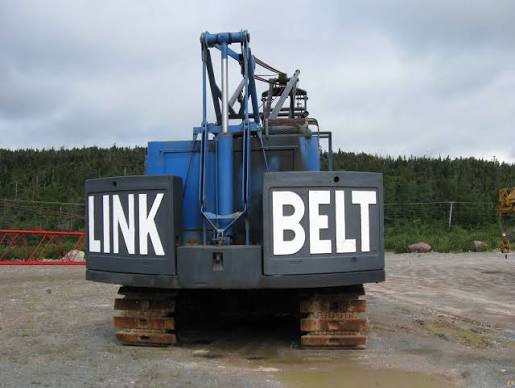

Link Belt LS-318 Crawler Crane
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity106.0 gal
Operating Voltage12 V

Engine

Engine specifications
Engine ModelGM 6-71N
Power Measured @1,915 rpm
Net Power171.0 hp
Number of Cylinders6
Torque Measured @1,200 rpm
Max Torque532 lb-ft
Stroke5 in
Bore4 in
Battery1

Dimensions

Dimensions specifications
Ground Clearance15 in
Tail Swing Radius182 in
Transport Width132 in
Transport Height138 in
Gradeability37.0 %

Transmission

Transmission specifications
Max Speed0.9 mph

Undercarriage

Undercarriage specifications
Width of Shoes17 in
Number of Shoes per Side37
Number of Track Rollers per Side8

Boom

Boom specifications
Min Height @ Max Raise Angle300 in
Swing Speed3 rpm
Max Height @ Max Raise Angle - no jib1,800 in
