Link Belt

LS-338

Crawler Crane

Power Measured @
1,915 rpm
All crawler cranes

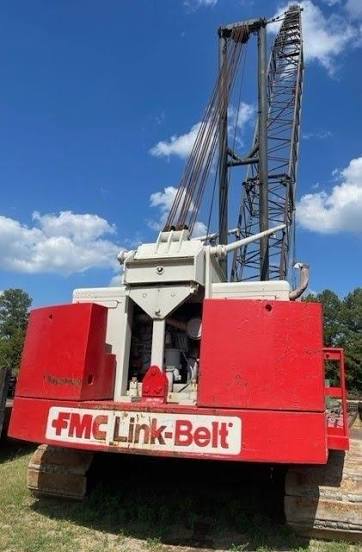

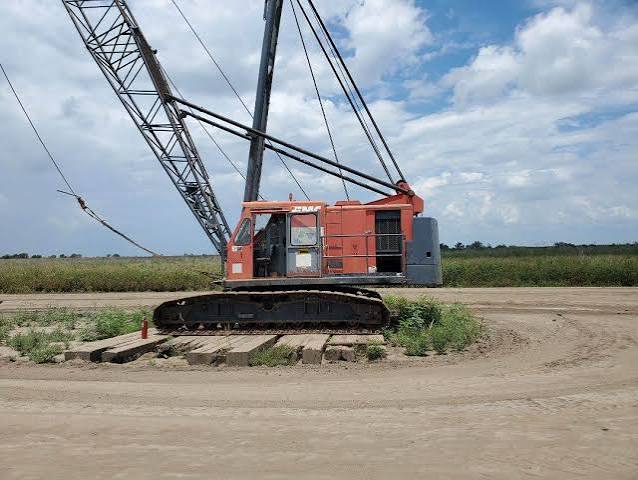

Link Belt LS-338 Crawler Crane
1 / 5
Image 1 of 5
Image: mylittlesalesman.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity106.0 gal
Operating Voltage12 V

Engine

Engine specifications
Engine ModelGM6-71N
Displacement426 in³
Power Measured @1,915 rpm
Net Power171.0 hp
Number of Cylinders6
Torque Measured @1,200 rpm
Max Torque532 lb-ft
Bore4 in
Stroke5 in

Dimensions

Dimensions specifications
Ground Clearance15 in
Tail Swing Radius182 in
Transport Width200 in
Transport Height451 in

Transmission

Transmission specifications
Max Speed0.9 mph

Undercarriage

Undercarriage specifications
Width of Shoes38 in
Number of Shoes per Side43
Ground Pressure9 psi

Boom

Boom specifications
Min Height @ Max Raise Angle300 in
Swing Speed3 rpm
Max Height @ Max Raise Angle - no jib1,800 in
