Link Belt

LS-418A

Crawler Crane

Power Measured @
2,060 rpm
All crawler cranes

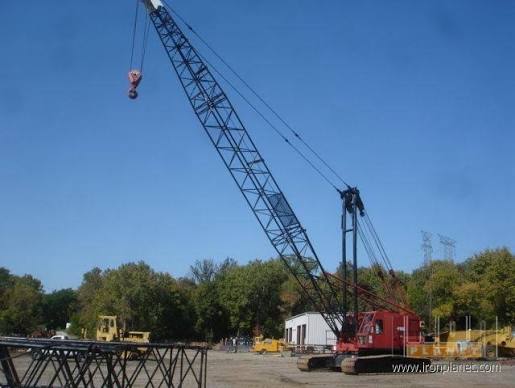

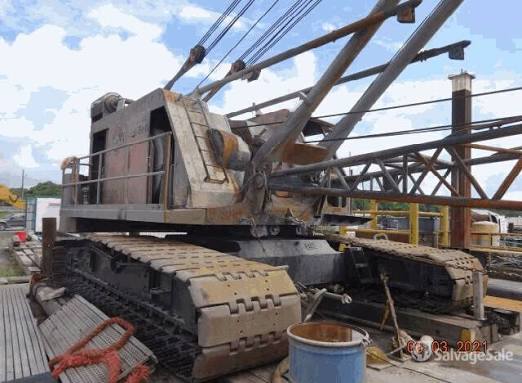

Link Belt LS-418A Crawler Crane
1 / 5
Image 1 of 5
Image: cranenetwork.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity100.0 gal
Operating Voltage12 V

Engine

Engine specifications
Engine ModelGM 6-71N
Displacement426 in³
Power Measured @2,060 rpm
Net Power190.0 hp
Number of Cylinders6
Torque Measured @1,200 rpm
Max Torque558 lb-ft
Bore4 in
Stroke5 in

Dimensions

Dimensions specifications
Ground Clearance15 in
Tail Swing Radius197 in
Transport Width206 in
Transport Height462 in
Counterweight Clearance47 in

Transmission

Transmission specifications
Max Speed1.1 mph

Undercarriage

Undercarriage specifications
Width of Shoes38 in
Number of Shoes per Side48
Number of Track Rollers per Side12
Ground Pressure10 psi

Boom

Boom specifications
Min Height @ Max Raise Angle600 in
Swing Speed3 rpm
