Link Belt

LS-518

Crawler Crane

Power Measured @
2,100 rpm
All crawler cranes

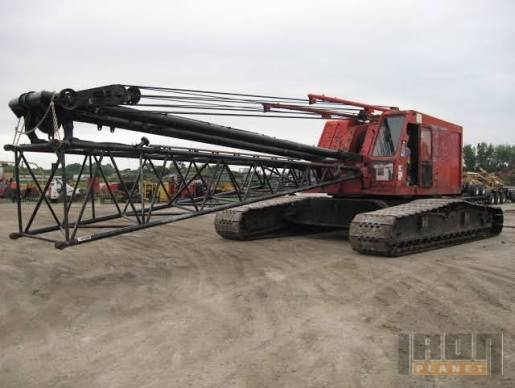

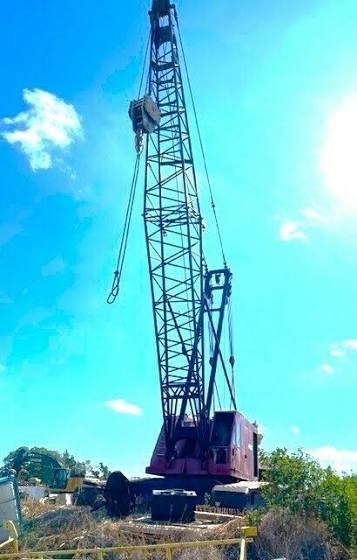

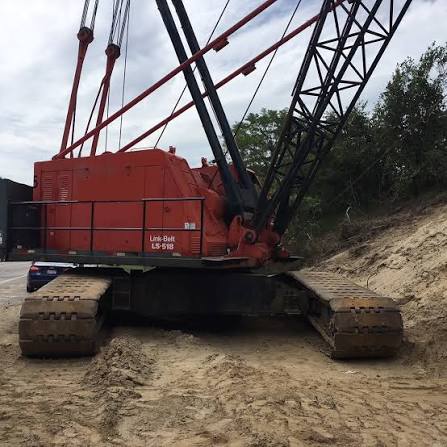

Link Belt LS-518 Crawler Crane
1 / 5
Image 1 of 5
Image: samtracinc.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity85.1 gal
Operating Voltage24 V

Engine

Engine specifications
Engine ModelGM 8V-71N
Displacement568 in³
Power Measured @2,100 rpm
Net Power245.5 hp
Number of Cylinders8
Torque Measured @1,200 rpm
Max Torque710 lb-ft
Stroke5 in
Bore4 in

Dimensions

Dimensions specifications
Ground Clearance18 in
Transport Width193 in
Transport Height472 in

Transmission

Transmission specifications
Max Speed1.1 mph

Undercarriage

Undercarriage specifications
Width of Shoes44 in
Number of Shoes per Side52
Number of Track Rollers per Side14
Ground Pressure8 psi

Boom

Boom specifications
Min Height @ Max Raise Angle600 in
Swing Speed3 rpm
Max Height @ Max Raise Angle - no jib1,560 in
