Link Belt

TCC-750

Crawler Crane

Power Measured @
1,800 rpm
All crawler cranes

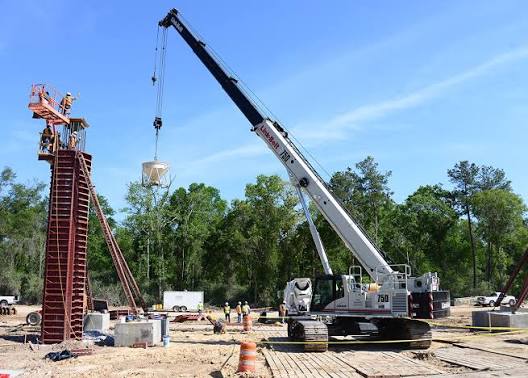

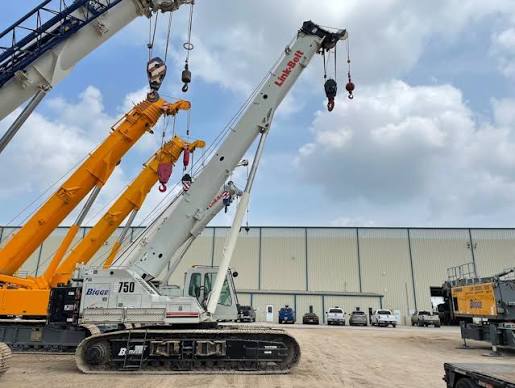

Link Belt TCC-750 Crawler Crane
1 / 5
Image 1 of 5
Image: renderhub.com

Specifications

34 data points

Operating Specifications

Operating Specifications specifications
Operating Weight12,000 lb
Fuel Capacity80.0 gal
Operating Voltage12 V
Hydraulic System Fluid Capacity165.0 gal
Alternator Supplied Amperage160 A

Engine

Engine specifications
Power Measured @1,800 rpm
Gross Power215.0 hp
Number of Cylinders6
AspirationTier 4f
Torque Measured @1,500 rpm
Max Torque730 lb-ft
Engine MakeCummins QSB
Stroke5 in
Bore4 in
Crankcase capacity4.6 gal
Piston displacement409 in³

Dimensions

Dimensions specifications
Wheelbase207 in
Tail Swing Radius126 in
Transport Width204 in
Transport Height127 in
Transport Length588 in
Gradeability40.0 %

Transmission

Transmission specifications
Max Speed1.3 mph
Transmission Type2-speed travel

Undercarriage

Undercarriage specifications
Width of Shoes36 in
Number of Shoes per Side61
Number of Track Rollers per Side12
Track Gauge174 in
Length of Track on Ground251 in

Boom

Boom specifications
Min Height @ Max Raise Angle770 in
Max Height @ Max Raise Angle - no jib1,464 in
Max Elevating Angle80 °
Min Working Radius121 in
Number of Sections4
