Massey Ferguson

1560

Tractor

Operating Weight
4,078 lb
Displacement
180 in³
Power Measured @
2,600 rpm
Gross Power
59.1 hp
All tractors

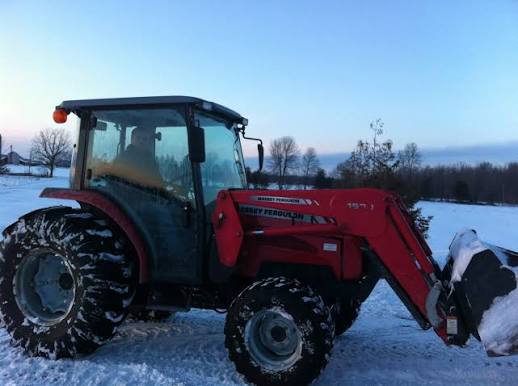

Massey Ferguson 1560 Tractor
1 / 5
Image 1 of 5
Image: tractordata.com

Specifications

18 data points

Operating Specifications

Operating Specifications specifications
Operating Weight4,078 lb
Fuel Capacity13.3 gal
3 Point Hitch Lift Capacity @ 24 inches3,748 lb
3 Point Hitch TypeCat I

Engine

Engine specifications
Displacement180 in³
Power Measured @2,600 rpm
Gross Power59.1 hp
Number of Cylinders4
PTO Power46.4 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity19.6 gal/min

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab93 in
Wheelbase79 in
Overall Length11 in

Transmission

Transmission specifications
Number of Forward Gears12
Number of Reverse Gears12

Production

Production specifications
Series1500 Series
Years Manufactured2,005 – 2,008
